DJI D14000iE Generator Setup Guide: Installation, Components & First Use

September 17, 2026

Before the DJI D14000iE is used as a field charger, its mobility hardware should be installed correctly and the operator should know where the major service components are located. DJI's initial-installation pages cover the supporting feet, casters and handles; the overview pages then identify the fuel, oil, cooling, control and charging assemblies.

Quick Answer: If the supporting feet near the muffler are removed, support the generator at the same height so it does not tilt backward. Install the casters with the wheel shaft, washer and clip, then mount the handles with their clips and bolts. After assembly, locate the oil gauge, status LEDs, operation panel, charging cable, air filter, spark arrestor, muffler shield and engine-oil dipstick before first use.

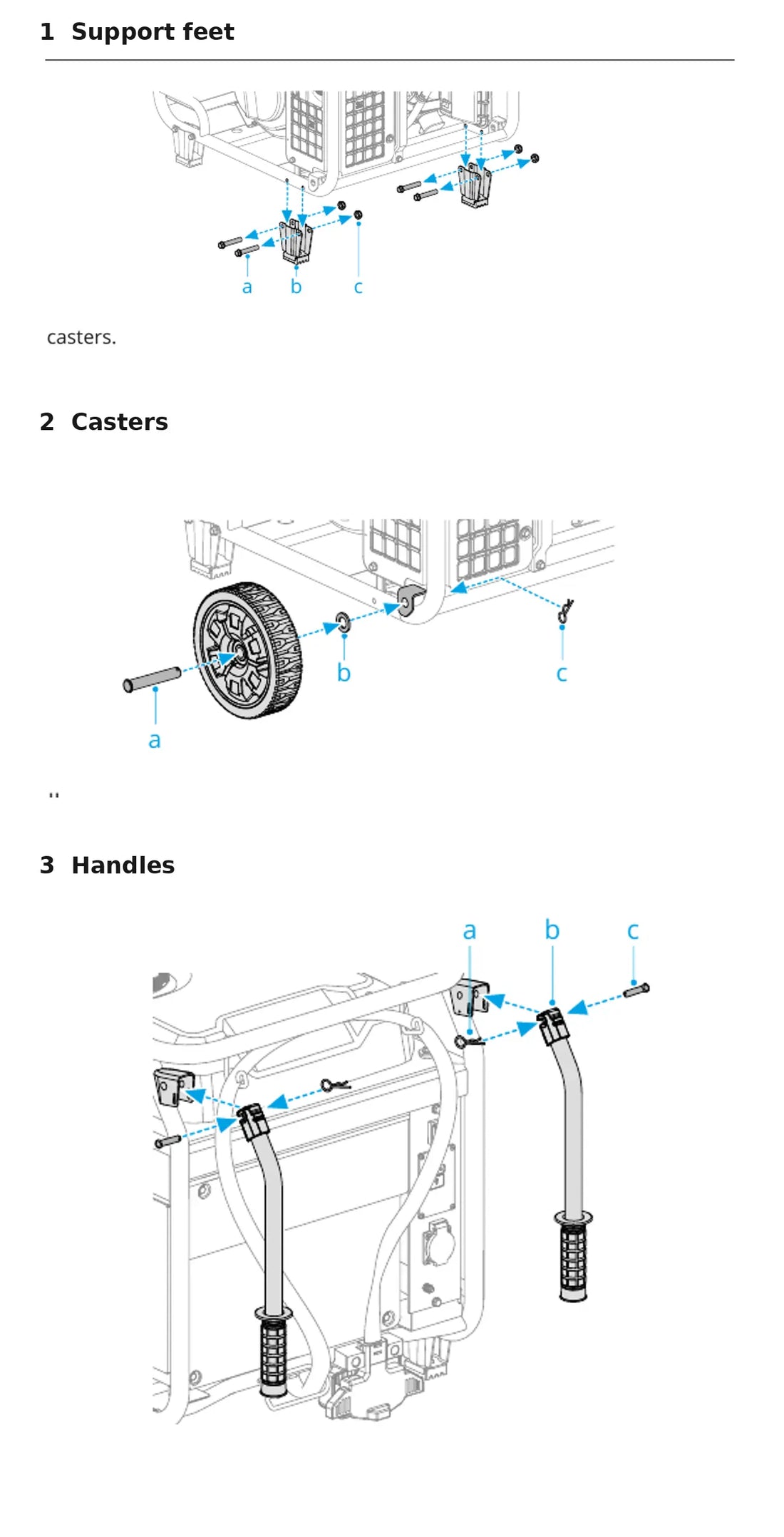

DJI D14000iE supporting feet casters and handle installation diagrams — Picture-book installation strip assembled from DJI manual pp. 4-5.

1. Supporting feet

DJI says removal of the two original supporting feet near the muffler is recommended when the generator needs to move over uneven ground; otherwise this step can be skipped. Before removing them, place a wooden or rubber block under the generator at the same height as the feet so the frame does not tilt backward.

2. Casters

The caster assembly uses the wheel shaft, washer and clip shown in the diagram. Follow the illustrated order rather than improvising the retention hardware.

3. Handles

Mount the handles using the clip, handle and bolt arrangement shown by DJI. The manual treats handle installation as a separate assembly step from the caster installation.

DJI D14000iE generator numbered component map — Generator component map — DJI D14000iE User Manual p. 6.

Know the generator before starting it

The component map identifies the fuel tank and cap, oil level gauge, frame, handle, three status LEDs, operation panel, charging cable, control unit, supporting feet, casters, fan hood, air filter, spark arrestor, muffler shield and engine-oil dipstick. The continuation adds the spark plug, engine-oil drain hose, electronic fuel-injection unit and high-pressure oil pipe.

View the complete DJI Agras T100 D14000iE Inverter Generator or browse the DJI D14000iE Generator Parts collection.

D14000iE pre-operation checklist visual — After assembly, move directly into the daily pre-operation checks.

Before the first engine start

The engine leaves the factory without engine oil. DJI instructs the operator to add SJ 10W-40 or equivalent engine oil before use and warns not to power on the generator before filling engine oil and gasoline.
