DJI D14000iE spark plug maintenance and gap

DJI D14000iE Spark Plug Guide: F6RTC Gap, Cleaning, Torque & Replacement

September 17, 2026

The D14000iE manual specifies the spark-plug model, inspection condition, electrode gap and installation torque. That makes spark-plug service one of the clearest component-level maintenance procedures in the generator manual.

Quick Answer: DJI identifies the original spark plug as F6RTC. With the generator stopped and fully cooled, remove the plug with the dedicated socket. Replace it if the insulator or sealing gasket is broken. Clean carbon/deposits with a stiff wire brush, set the electrode gap to 0.6-0.8 mm, hand-thread the plug two to three rotations, then tighten to 20-25 N·m.

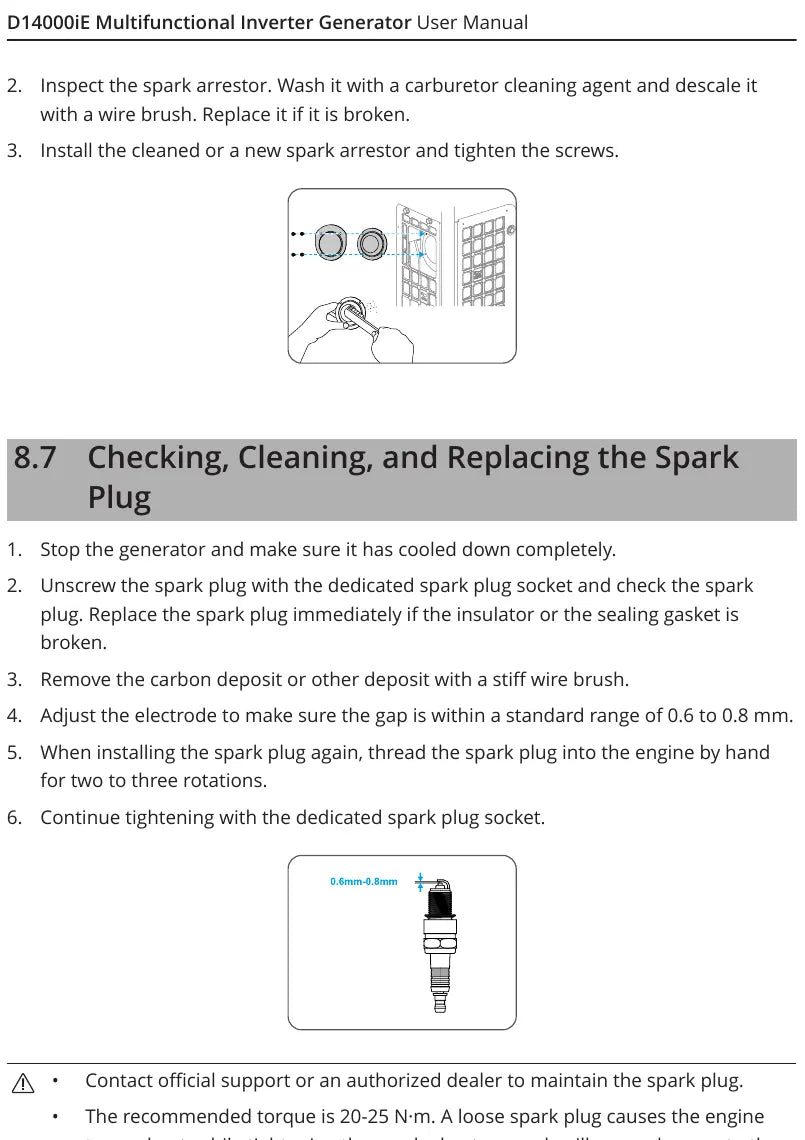

D14000iE F6RTC spark plug gap and maintenance diagram — The plug diagram marks the 0.6-0.8 mm electrode gap — manual p. 20.

Remove and inspect

Stop the generator and allow it to cool completely. Remove the spark plug with the dedicated spark-plug socket. Replace the plug immediately if the insulator or sealing gasket is broken.

Clean carbon and set the gap

Remove carbon or other deposits with a stiff wire brush. Adjust the electrode until the gap is within 0.6-0.8 mm. DJI states that correct gap and freedom from deposits are necessary for proper engine operation.

Install and torque

Thread the spark plug into the engine by hand for two to three rotations before tightening with the dedicated socket. The recommended final torque is 20-25 N·m. DJI warns that a loose plug can cause engine overheating, while over-tightening can damage the engine threads.

Use the correct plug model

The original plug model identified by DJI is F6RTC. The manual warns that installing the wrong type can damage the engine.

D14000iE spark plug maintenance interval — Spark-plug service appears in the 300H / 1-year maintenance group.

If the ignition problem remains

A serviced spark plug does not prove every ignition component is healthy. If remote-controller diagnostics and engine symptoms point beyond the plug, the exact active catalog includes the D14000iE Zongshen Ignition Coil with Trigger. Use that path only after plug condition, fuel supply and basic pre-operation checks are understood.
