DJI Agras T100/T70 Series/T25P: Manual Completo de Segurança
DJI Agras T100/T70 Series/T25P: Manual Completo de Segurança — Regulamentos, Preflight, Spraying e Baterias

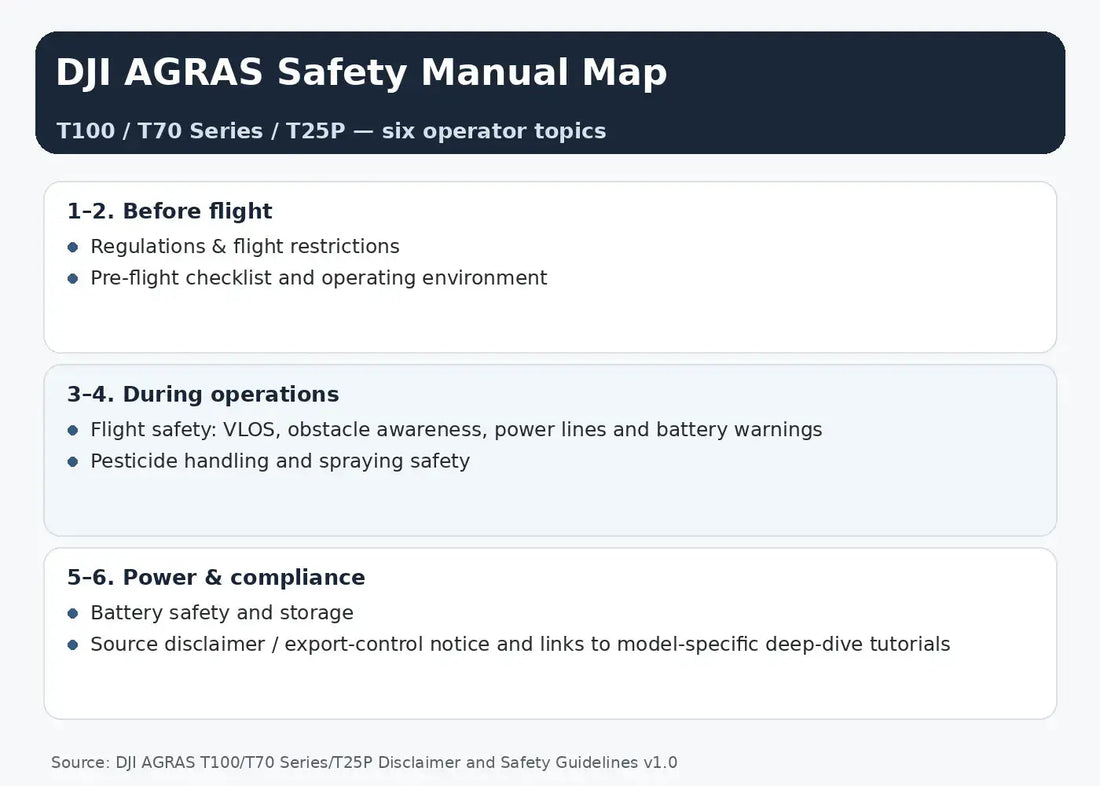

Este hub reorganiza o conteúdo inglês do DJI AGRAS T100/T70 Series/T25P Disclaimer and Safety Guidelines v1.0 em referências operacionais: regulations, preflight, environment, flight safety, pesticide handling, battery safety e export-control notice.
Resumo: confirme autorização, revise aircraft/spray system/warnings, use manufacturer weather/GNSS limits, mantenha VLOS e separation, não dependa totalmente de obstacle sensing, use PPE/contamination controls e retire de service batteries wet, swollen, leaking ou heavily impacted.
1. Safety begins before power-on
Authorization, environment, hardware, chemicals e battery condition.
2. Intended use
Agriculture, forestry, animal husbandry e fisheries; no human carriage.
3. Illegal/dangerous payloads
Prohibited.
4. Manned aircraft
Do not interfere.
5. Major/restricted areas
Authorization where required.
6. GEO ≠ local law
Separate layers.
7. 100 m / 2 km
Manufacturer guidance; local legal limits vary.
8. Preflight power
Devices charged.
9. Propulsion/sensing
Inspect motors, props, vision, radar, antennas.
10. Secure mounting
Battery, tank, locks, cables.
11. Spray readiness
No blockage/leaks.
12. DJI Agras warnings
Review all.
13. Weather
0–40°C; wind ≤6 m/s.
14. Drift-sensitive spraying
Below 3 m/s recommended.
15. Severe weather
No heavy rain >25 mm/12h, snow, ice, fog, lightning.
16. GNSS
Strong GNSS/open area.
17. Electromagnetic environment
Avoid strong sources.
18. Altitude
Max 4.5 km sea level; performance decreases with elevation.
19. People/animals
>10 m crowds/animals; >6 m aircraft separation.
20. VLOS
Continuous.
21. Obstacle sensing
Do not fully rely.
22. Battery warning
Return promptly; critical battery triggers auto landing.
23. Power lines
Do not touch after high-voltage contact.
24. Shutdown
Motors → aircraft → controller.
25. Pesticide handling
Follow chemical specs; clean mineral-free water; filter before tank.
26. PPE/upwind
Reduce exposure.
27. Cleanup
System, aircraft, controller.
28. Water protection
No contamination of rivers/drinking sources.
29. Surplus
Minimize leftover.
30. Incompatible liquids
No strong acids/bases/high-temp/prohibited pesticide.
31. Liquid-exposed battery
Isolate and contact support/dealer.
32. Battery temperature
-5°C to 45°C.
33. Physical damage
No swollen/leaking/damaged/crash battery use.
34. No disassembly/puncture
Not field service.
35. Heat/storage
Avoid heat and extended full-discharge storage.
36. Export Controls section
A source says export/re-export/transfer can be subject to Chinese and other applicable export-control laws/sanctions.
37. User responsibility
Comply with applicable requirements; source mentions embargo/sanctioned-party/weapons restrictions.
38. Not a country-specific legal guide
Current transactions require applicable law at that time.
39. Daily workflow
- authorization;
- site/weather/GNSS;
- preflight;
- spray system;
- warnings;
- battery safety;
- chemical/PPE;
- VLOS monitoring;
- shutdown;
- cleanup/logs.
40. Route findings by subsystem
Propulsion, sensing, spraying, battery/power ou compliance.
41. Guias localizadas
42. Perguntas frequentes
GEO replaces law?
No.
Wind?
≤6 m/s manufacturer guidance.
Obstacle sensing infallible?
No.
Wet/swollen battery?
Remove from normal service.
Replaces pesticide label?
No.
Replaces local law?
No.
Fonte e revisão
Fonte: DJI AGRAS T100/T70 Series/T25P Disclaimer and Safety Guidelines v1.0.
43. Use o manual completo como uma sequência de safety gates
O documento funciona melhor quando cada topic vira uma decisão: legal/operational authorization → preflight → environment → in-flight monitoring → pesticide handling → battery safety. Um gate não substitui o outro.
44. Gate 1: operação autorizada e dentro do intended use
Confirme que a mission é compatível com agriculture, forestry, animal husbandry ou fisheries, que não transporta pessoas ou dangerous/illegal payloads e que local authorizations foram revisadas.
45. Gate 2: aircraft e spraying system prontos
Battery, propulsion, sensors, arm locks, tank, hoses e sprinklers precisam passar no preflight antes da task.
46. Gate 3: environment aceitável
Verifique temperature, wind, GNSS, electromagnetic environment, crowd/animal separation e altitude. Para drift-sensitive chemicals, use o stricter wind guidance da pesticide section.
47. Gate 4: continuous flight monitoring
VLOS, battery warnings, obstacle-awareness limitations e power-line hazards continuam relevantes depois do takeoff. O safety system não deve ser tratado como substituto do operator awareness.
48. Gate 5: chemical handling
Water quality, filtration, PPE, upwind position, spill control, aircraft/controller cleanup e waterway protection precisam fazer parte do same operating plan.
49. Gate 6: battery physical safety
Wet, swollen, leaking, damaged ou crash-impacted batteries saem do normal service flow. Physical history tem prioridade sobre firmware ou charging troubleshooting.
50. Export-control section: preserve o scope
A source também contém uma general Export Controls notice sobre Chinese export-control law e outras applicable export-control laws/sanctions. Ela não fornece uma complete country-specific compliance framework. Para uma transaction real, esse topic precisa de current jurisdiction-specific review.
51. Daily safety record recomendado
- authorization reviewed;
- preflight passed;
- weather/GNSS passed;
- VLOS/route hazards reviewed;
- pesticide handling controls passed;
- battery physical safety passed;
- unresolved warning/finding;
- GO / NO-GO;
- operator.
