O DJI D14000iE User Manual v1.0 separa activation, firmware e normal engine-start/battery-charging workflow. Physical setup completo não elimina o need de activation.

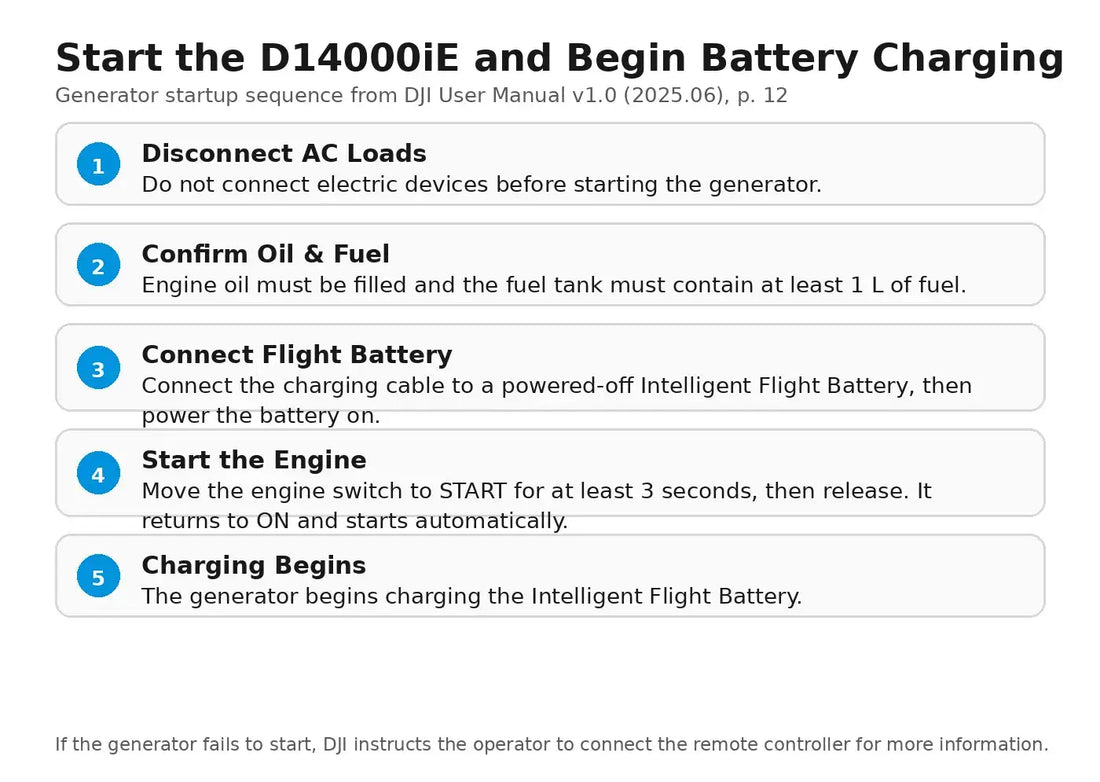

Resumo: conecte o remote controller, abra DJI Agras → Device Management → Charging Device e ative. Atualize firmware quando solicitado. Para charging, comece sem AC devices, confirme engine oil e pelo menos 1 L de fuel, conecte charging cable à battery desligada e depois ligue a battery. Segure engine switch em START por pelo menos 3 segundos, solte, e o switch retorna a ON enquanto generator starts e charging begins.
1. Activation before first use
Obrigatória.
2. Remote connection
USB-C operation-panel port.
3. DJI Agras path
Device Management → Charging Device.
4. Firmware
Siga on-screen update prompts.
5. Log export
Same USB-C port.
6. Four yellow generator flashes
Check activation first.
7. No AC devices before start
Comece battery charging sem loads.
8. Engine oil
Verify level.
9. Fuel ≥1 L
Startup charging requirement.
10. Battery OFF before connection
Connect cable first.
11. Battery ON after connection
Then power on.
12. START ≥3 sec
Hold.
13. Release to ON
Switch returns.
14. Automatic start
Charging begins.
15. Charging LED
Use ready/charging/full/warning/error states.
16. AC loads reduce capacity
Charging time increases.
17. Separate load planning
AC outlet demand reduces charging throughput.
18. No-start first action
Connect remote controller for more information.
19. Multiple causes
Oil, fuel, cranking, ignition, control or other engine state.
20. Cranking branch
Electric Starter / Starter Relay after evidence.
21. Fuel branch
Gasoline Pump / Filter after evidence.
22. Ignition branch
Ignition Coil with Trigger.
23. Control branch
Controller / Switch Button.
24. Activation branch
Resolve commissioning before engine replacement.
25. Startup checklist
- pre-op pass;
- activation;
- firmware;
- no AC loads;
- oil;
- fuel ≥1 L;
- battery OFF;
- cable secure;
- battery ON;
- START ≥3 sec;
- LED normal.
26. Commissioning record
- asset ID;
- activation;
- firmware;
- oil/fuel;
- battery ID;
- start result;
- LED;
- first charge;
- operator.
27. Battery connected while ON
Not the documented sequence.
28. START too short
Manual says at least 3 seconds.
29. Engine starts, no charge
Check charging branch, not engine by default.
30. Charging works, AC fails
AC-module branch.
31. AC loads during charge
Expect reduced charging capacity.
32. Evidence package
- LED;
- controller message;
- oil/fuel;
- battery ID;
- AC load;
- engine behavior;
- firmware;
- logs/photos.
33. Erro: no-start = starter
Not always.
34. Erro: AC loads connected at start
Do not.
35. Erro: battery ON during connection
OFF first.
36. Erro: skip activation
Not allowed.
37. Erro: full charging capacity with AC loads
No.
38. Perguntas frequentes
Activation path?
DJI Agras Charging Device.
Fuel?
At least 1 L.
Battery before cable?
OFF.
START?
≥3 sec.
AC load?
Reduces charging capacity.
Fonte e revisão
Fonte: DJI D14000iE User Manual v1.0 (2025.06), pp. 7–9 e 12–13.
39. Activation e startup devem ser registrados separadamente
Activation confirma commissioning software; successful engine start confirma mechanical/engine readiness. Um pode passar e o outro falhar, então mantenha dois results no asset record.
40. Firmware update deve ser um change event
Se startup/charging behavior muda depois de firmware, registre timing e exact warning. Isso ajuda support a separar software change de fuel/oil/cranking issue.
41. Battery connection order deve ser padronizada
Treine todos os operators para conectar a battery enquanto OFF, confirmar cable seating e só então power the battery ON. Consistent sequence reduz variation entre turnos.
42. START ≥3 sec deve entrar no operator SOP
Esse timing é explícito no manual. Se o engine não inicia, não substitua starter antes de confirmar que o correct starting input foi aplicado.
43. AC-load sharing deve aparecer no charging log
Quando AC devices estão em uso junto com battery charging, registre essa load condition porque charging capacity diminui e charge time aumenta.
44. No-start escalation record
- activation state;
- firmware state;
- oil level;
- fuel ≥1 L;
- battery connection sequence;
- START timing;
- LED pattern;
- controller message;
- cranking/fuel/ignition/control branch selected.
