DJI D14000iE: Manutenção de Engine Oil e 10W-40
DJI D14000iE: Manutenção de Engine Oil — Nível e Troca com 10W-40
Engine oil é daily-readiness item e scheduled service no D14000iE. Low oil pode causar engine damage e o built-in sensor pode parar o engine abaixo do safety threshold.
Resumo: pare o generator em superfície plana. Se acabou de operar, espere pelo menos 15 min. Limpe o dipstick, reinsira sem rosquear, remova sem inverter e leia o nível. Use SJ 10W-40 ou equivalent API SJ+. Para troca, aqueça por alguns minutos, pare, drene pelo oil-drain hose e refill até upper limit.
1. Stop engine
Before oil check.
2. Flat surface
For correct reading.
3. Wait 15 min
After recent operation.
4. Wipe dipstick
Before measurement.
5. Insert without screwing
Important measurement detail.
6. Remove without inverting
Preserve reading.
7. Add if near/below low mark
Use recommended oil.
8. Tighten after check
Close properly.
9. Oil specification
SJ 10W-40, four-stroke, API SJ or better.
10. Check every use
Part of pre-op.
11. Low-oil sensor
Can stop engine.
12. Flameout ≠ starter automatically
Check oil first.

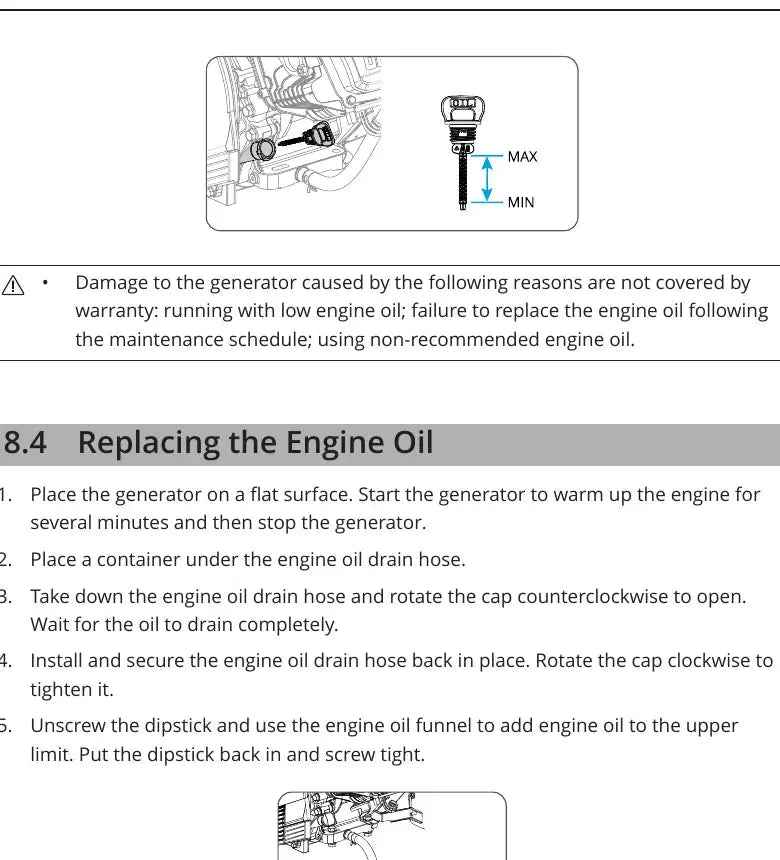

13. Warm before replacement
Run several minutes.
14. Stop before drain
Engine off.
15. Place container
Under drain hose.
16. Remove drain hose
Use dedicated service point.
17. Open cap counterclockwise
Drain completely.
18. Reinstall cap/hose
Secure after drain.
19. Refill at dipstick opening
To upper limit.
20. Do not overfill
Respect upper mark.
21. First replacement
20-hour initial interval.
22. Routine replacement
Follow schedule.
23. High temperature
Consumption rises; shorten interval as needed.
24. Oil service log
- asset;
- hours;
- level;
- oil spec;
- date;
- leak/condition;
- next due.
25. Unexpected stop
Check oil before starter/relay replacement.
26. Contaminated oil
Document and service.
27. Damaged drain point
Resolve before normal operation.
28. Common mistakes
Slope, screwing dipstick, inverting before reading, skipping 15-minute wait or jumping to starter diagnosis.
29. FAQ
Oil: SJ 10W-40/API SJ+. Check: every use. Wait: 15 min. Dipstick: no screw-in. Initial replacement: 20 h.
Fonte
DJI D14000iE User Manual v1.0 (2025.06), pp. 10–11 e 16–19.
30. Oil check deve preceder no-start diagnosis
Se o engine não permanece running, confirme oil level e low-oil protection antes de avançar para starter, relay ou ignition branches.
31. Oil history ajuda a detectar consumo anormal
Registre quando foi a última replacement e se o level caiu mais rapidamente em high-temperature operation.
32. Refill deve terminar com verification
Depois de adicionar oil, repita o dipstick check pelo mesmo method antes de encerrar o service event.
33. Drain service precisa de leak check
Após reinstalar hose/cap, confirme visualmente que o service point está seco antes do next start.
34. Oil-service record
- asset ID;
- hours;
- date;
- oil specification;
- pre-service level;
- replacement completed;
- post-service level;
- leak check;
- next due.
35. High-temperature adjustment
Quando a source exigir shorter interval por heat, registre a adjustment e o novo next-due target.
