DJI D14000iE: Painel de Operação e Guia de LEDs de Status
O DJI D14000iE User Manual v1.0 separa diagnostics em charging channel, AC module e generator status. Primeiro identifique o channel; depois use o remote controller para detailed warning/error.

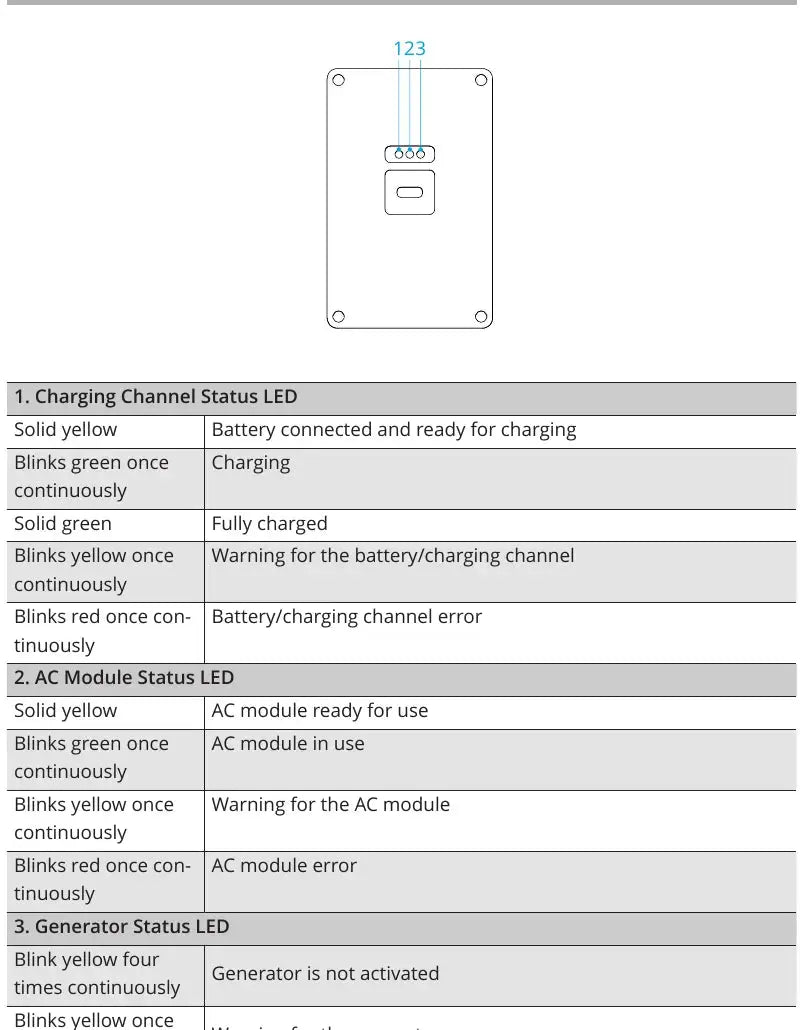

Resumo: LED 1 = battery/charging; LED 2 = AC module; LED 3 = generator. Four yellow generator flashes = not activated. Four red = maintenance required. Yellow blink = warning; red blink = error. Para details, conecte o remote controller.
1. Engine switch
Start/stop control.
2. USB-C
Controller, firmware e log export.
3. AC outlet
IP44; reinstale shield quando não estiver em uso.
4. Ground terminal
Proper grounding point.
5. Three LED channels
Charging, AC e generator.
6. Charging solid yellow
Ready.
7. Charging green blink
Charging.
8. Charging solid green
Full.
9. Charging yellow blink
Warning.
10. Charging red blink
Error.
11. AC solid yellow
Ready.
12. AC green blink
In use.
13. AC yellow blink
Warning.
14. AC red blink
Error.
15. Generator four yellow
Not activated.
16. Generator yellow blink
Warning.
17. Generator red blink
Error.
18. Generator four red
Maintenance required.
19. LED = branch
Não é part diagnosis.
20. Remote-controller details
Use a mesma connection de activation.
21. No-start
Pode ser oil, fuel, ignition, control ou cranking.
22. Cranking path
Electric Starter / Starter Motor Relay only after evidence.
23. Control path
Generator Controller / Switch Button.
24. Activation branch
Four yellow first.
25. Maintenance branch
Four red.
26. Diagnostic checklist
- channel;
- pattern;
- engine state;
- charging/AC state;
- controller;
- message;
- maintenance history;
- service part last.
27. Keep branches separate
AC warning ≠ charging warning.
28. Normal charging LED + generator error
Generator branch gains priority.
29. Running engine + AC error
AC-output branch.
30. Multiple LEDs
Capture all before reset.
31. LED record
- asset ID;
- channel;
- pattern;
- battery;
- AC load;
- engine state;
- DJI message;
- maintenance;
- result.
32. Erro: four yellow = engine failure
Não.
33. Erro: four red = generic error
Maintenance required.
34. Erro: starter replacement by guess
Diagnostics first.
35. Erro: AC shield ignored
Reinstall.
36. Perguntas frequentes
Four yellow?
Not activated.
Four red?
Maintenance required.
Solid green charging?
Full.
AC green blink?
In use.
Details?
Remote controller/DJI Agras.
Fonte e revisão
Fonte: DJI D14000iE User Manual v1.0 (2025.06), pp. 7–9 e 12.
37. LED history deve ser preservado antes de power-cycle
Se um warning aparece, registre channel, color/pattern e engine state antes de desligar ou reiniciar. Power-cycling pode remover a visual evidence que ajuda o remote-controller diagnosis.
38. Four-red maintenance code deve ser comparado ao service history
Quando o generator pede maintenance, revise hours/interval history e quais items já foram serviced. Não trate maintenance-required como single-part failure.
39. No-start diagnostic deve começar pelo state mais simples
Confirme activation, oil, fuel e visible warnings antes de avançar para cranking, ignition ou control electronics. Essa ordem evita replacement por tentativa.
40. AC-module warning merece seu próprio log
Registre se o generator estava powering an AC device, qual load estava connected e se battery charging ocorria simultaneamente. Isso contextualiza o AC LED.
41. Charging-channel warning precisa do battery ID
Associe o LED pattern à battery model/ID conectada. Sem isso, uma repeated battery-specific issue pode parecer generator fault.
42. Diagnostic acceptance checklist
- channel/pattern captured;
- controller message captured;
- activation state checked;
- maintenance status checked;
- fuel/oil state checked;
- battery/AC-load context recorded;
- single subsystem selected for service.
