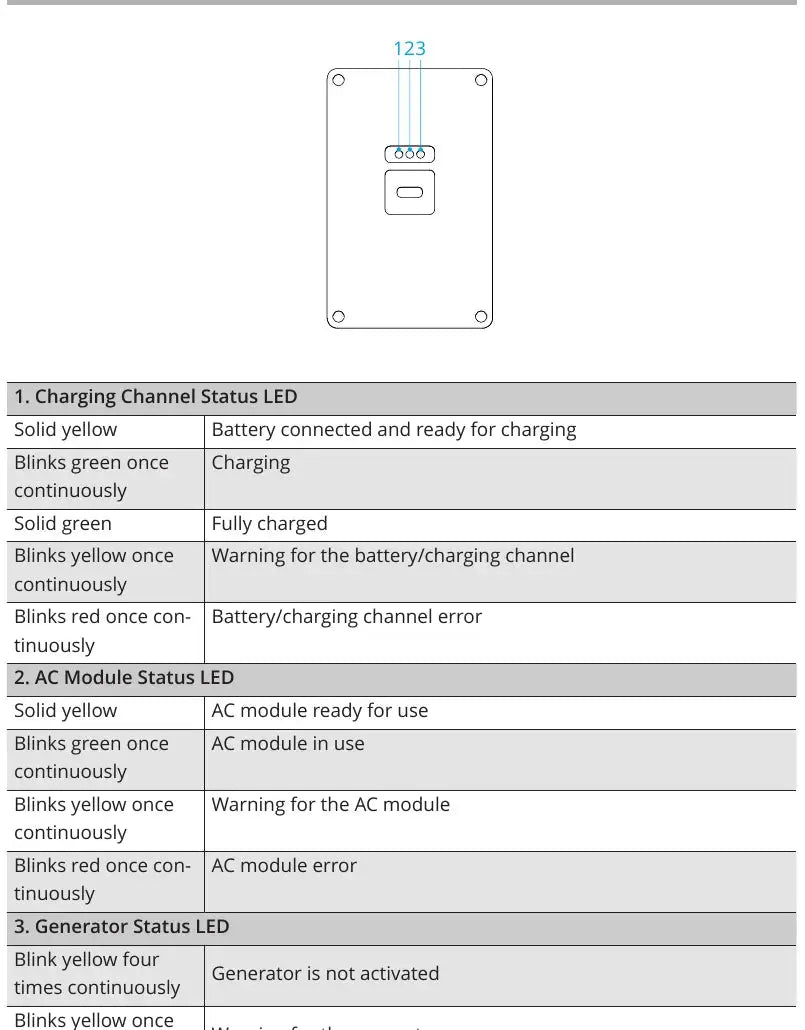

El DJI D14000iE Multifunctional Inverter Generator User Manual v1.0 organiza el diagnóstico visual en tres LED channels: charging channel, AC module y generator status. La regla principal es simple: primero identifique qué LED está señalando; después consulte DJI Agras para el detailed warning/error.
Respuesta rápida: LED 1 corresponde al battery/charging path; LED 2 al AC module; LED 3 al generator. Four repeating yellow flashes en el generator LED significan not activated. Four repeating red flashes significan generator maintenance required. Un repeating yellow blink es warning y repeating red blink es error. Para details, conecte el remote controller.
1. Engine switch
El engine switch inicia o detiene el generator. Si el physical switch está dañado, sepárelo de un no-start caused by fuel, oil, ignition o controller faults.
2. USB-C port
El operation panel USB-C se utiliza para remote-controller connection, firmware update y log export.
3. AC outlet
La source indica que el AC outlet es IP44-rated. Reinstale y apriete el protective shield cuando no esté en uso.
4. Ground terminal
Es el punto para proper grounding dentro del intended setup. Mantenga grounding work conforme al manual y electrical requirements aplicables.
5. Three LED channels
Antes de diagnosticar, determine si el signal viene del charging channel, AC module o generator channel.
6. Charging Channel — solid yellow
Battery connected and ready for charging.
7. Charging Channel — green blink
Charging in progress.
8. Charging Channel — solid green
Fully charged.
9. Charging Channel — yellow blink
Battery/charging warning.
10. Charging Channel — red blink
Battery/charging error.
11. AC Module — solid yellow
Ready for use.
12. AC Module — green blink
AC module in use.
13. AC Module — yellow blink
AC warning.
14. AC Module — red blink
AC error.
15. Generator — four yellow flashes
Not activated. Este pattern tiene una meaning específica y no debe confundirse con engine failure.
16. Generator — single yellow blink
Generator warning.
17. Generator — single red blink
Generator error.
18. Generator — four red flashes
Generator maintenance required.
19. LED = subsystem branch
No sustituya components por color. Use el LED para escoger el diagnostic branch y el remote controller para details.
20. Remote-controller diagnostic path
La misma connection usada para activation también permite leer warnings/errors y export logs.
21. If generator will not start
No asuma starter failure. El no-start branch puede involucrar oil protection, fuel delivery, ignition, control electronics o cranking hardware.
22. Cranking path
Si diagnostics identifican el branch, customer-facing exact parts incluyen Electric Starter y Starter Motor Relay.
23. Control path
Generator Controller y Control Panel Switch Button pertenecen al control/electronics branch, no al fuel branch.
24. Activation branch
Four yellow generator flashes indican que debe verificar activation antes de reemplazar engine-side hardware.
25. Maintenance-required branch
Four red generator flashes significan maintenance required. Consulte detailed information y maintenance history.
26. Diagnostic checklist
- identify LED number/channel;
- record exact pattern;
- note engine running/not running;
- note charging/AC load state;
- connect remote controller;
- capture detailed message;
- check maintenance due status;
- only then select service part.
27. Keep AC and charging branches separate
Una AC-module warning no es lo mismo que battery charging warning. Mantener branches separados reduce unnecessary replacement.
28. If charging LED is normal but generator LED errors
El charger/battery path puede estar healthy mientras el engine/generator subsystem requiere attention.
29. If generator runs but AC LED errors
Eso apunta al AC-output branch y no necesariamente al engine-start branch.
30. If multiple LEDs signal
Preserve all patterns and remote-controller details before resetting or cycling power.
31. LED service record
- generator asset ID;
- LED channel;
- pattern;
- battery connected?;
- AC load connected?;
- engine running?;
- DJI Agras message;
- maintenance hours/history;
- action/result.
32. Error común: four yellow = engine failure
No; it means not activated.
33. Error común: four red = generic error
DJI defines maintenance required.
34. Error común: replace starter from no-start alone
Use diagnostics first.
35. Error común: ignore AC outlet shield
Reinstall/fasten when not in use.
36. Preguntas frecuentes
¿Four yellow generator flashes?
Not activated.
¿Four red?
Maintenance required.
¿Charging LED solid green?
Battery fully charged.
¿AC green blink?
AC module in use.
¿Cómo obtener details?
Con remote controller via USB-C/DJI Agras.
Fuente y revisión
Fuente principal: DJI D14000iE Multifunctional Inverter Generator User Manual v1.0 (2025.06), pp. 7–9 y 12.
