DJI C12000 activation and firmware workflow — Canada edition

DJI C12000 Activation & Firmware Update Guide with DJI Agras (Canada)

October 4, 2026

🇨🇦 CANADA — DJI C12000 Activation & Firmware Update Through DJI Agras for Canadian Operators

🇺🇸 Reading from the United States? See the U.S. edition: DJI C12000 Activation & Firmware Update Guide with DJI Agras

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers first-use activation and firmware updates through DJI Agras Device Management and the Charging Device menu. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI C12000 Intelligent Power Supply supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the C12000 charger and DB2160 batteries referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

The C12000 must be activated before first use. DJI uses the remote controller and DJI Agras as the activation, firmware-update and diagnostic interface for the intelligent power supply.

Quick Answer: Connect the remote controller to the C12000, run DJI Agras and open Device Management > Charging Device. Complete activation there. When DJI Agras reports that new firmware is available, follow the on-screen instructions to update the C12000.

C12000 USB-C to remote controller activation connection — Figure B shows the C12000 USB-C connection to the remote controller USB-A port.

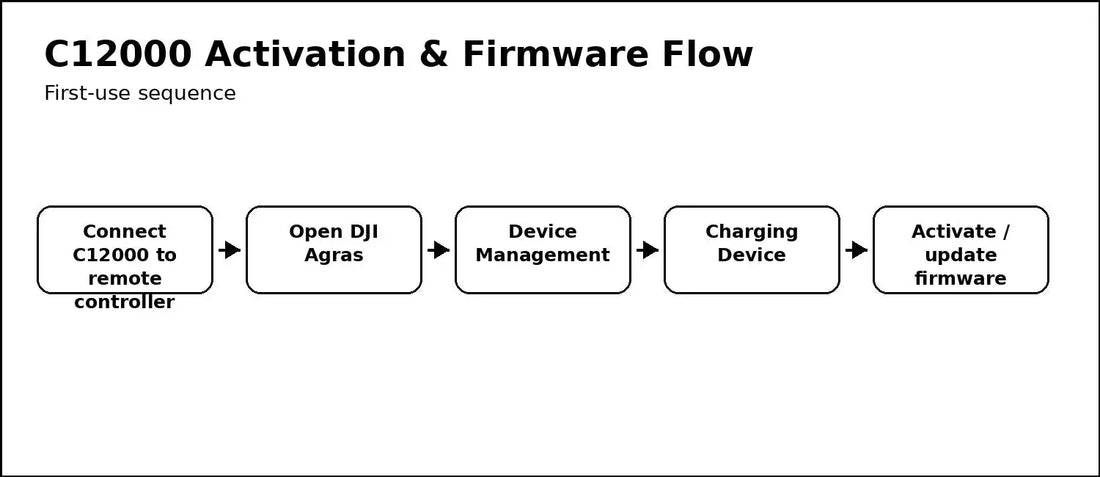

C12000 activation flow through DJI Agras Device Management Charging Device — First-use activation flow based directly on DJI's text.

Why activation matters

The DC Output status LED can flash yellow four times continuously when the product is not activated. That makes activation a direct troubleshooting branch when a new unit will not proceed normally.

Connect the remote controller

Use the C12000 USB-C port shown in the component map and connect it to the remote-controller USB-A port as shown in Figure B. Handle the ports and cables carefully and do not energize or manipulate the charging system outside the procedures described by DJI.

Open DJI Agras

On the remote controller, run DJI Agras and tap Device Management > Charging Device. Follow the activation prompts.

Update firmware when prompted

When new firmware is available, DJI instructs the operator to follow the on-screen update instructions. The manual does not provide an alternate offline update workflow, so this guide does not invent one.

Use the same connection for fault details

If any status LED blinks, the C12000 guide says to connect the remote controller to check the details. This makes the remote-controller connection both the first-use activation route and the diagnostic route.

Parts & Equipment Referenced in This Guide

Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.

Shop Related Collections

Canadian Operator FAQ: C12000 Activation & Firmware Update Guide with DJI Agras

Does Ares Acres ship the C12000 charger and DB2160 batteries to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including the C12000 charger and DB2160 batteries referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to use the DJI C12000 Intelligent Power Supply with my DJI Agras in Canada?

The DJI C12000 Intelligent Power Supply itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this activation and firmware procedure different for Canadian operators?

No. The activation and firmware procedure described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
