DJI C12000 Charging Site Safety Guide: Ventilation, Battery Spacing & Fire Protection (Canada)

October 4, 2026

🇨🇦 CANADA — DJI C12000 Charging Site Safety: Ventilation, Battery Spacing & Fire Protection for Canadian Shops & Field Trailers

🇺🇸 Reading from the United States? See the U.S. edition: DJI C12000 Charging Site Safety Guide: Ventilation, Battery Spacing & Fire Protection

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers ventilation clearance, battery spacing, environmental limits and fire and electrical precautions for a C12000 charging site, whether that is a heated shop in February or a field trailer in July. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI C12000 Intelligent Power Supply supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the C12000 charger, DB2160 batteries and cooling stations referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

The C12000 is a 12 kW-class charging power supply, so physical placement is part of safe operation. DJI's warnings specify how much clearance to leave around the charger, how far charging batteries should be kept from the unit and which environments should be avoided.

Quick Answer: Place the C12000 on a flat, stable, properly insulated surface with at least 50 cm of ventilation space. Keep charging batteries at least 30 cm from the power supply and away from the ventilation openings. Do not use or store it in direct sun, rain or wet environments, and keep it away from heat, high voltage, water, flammable gases and corrosives.

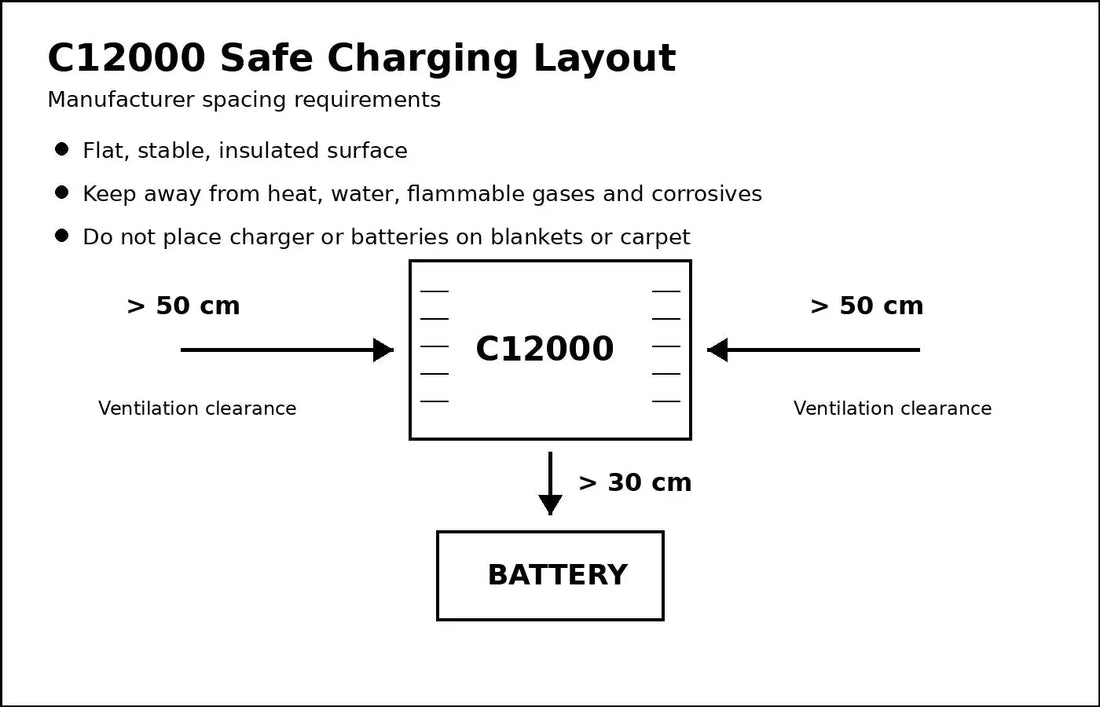

C12000 safe site layout with ventilation and battery separation — The spacing values come directly from DJI's warning section.

Keep at least 50 cm for ventilation

DJI instructs operators to keep at least 50 cm of space for ventilation. The unit should not be placed on a blanket or carpet while in use because soft or insulating surfaces can interfere with heat management and create a fire hazard.

Keep charging batteries at least 30 cm away

The charger should not be used in an area where batteries are stored. During charging, DJI requires at least 30 cm between the C12000 and the charging battery. The battery should also be kept away from the charger's ventilation openings so heat does not concentrate around either device.

Environmental restrictions

The warning section says not to use or store the product under direct sunlight, in rain or in other wet environments. It also says to keep the product away from heat, high voltage, water, flammable gases and corrosives. The warning section gives a storage-environment range of -5°C to 40°C, while the specifications section lists an operating temperature of 0°C to 40°C.

Fire response

DJI specifies a dry-powder fire extinguisher in the event of fire and warns that a liquid extinguisher may create an electrical hazard.

Do not disconnect live charging cables

Do not unplug the AC power cable or charging cable while the product is in use. The fast- and slow-charging articles below preserve the manufacturer's disconnect order for each mode.

C12000 fast and slow charging electrical requirements comparison — Fast and slow charging use different supply requirements, but both depend on proper site setup.

Battery-side equipment

The manual lists DB2100, DB1580 and DB2160 batteries as compatible in this revision. The verified current store path for the DB2160 Intelligent Flight Battery should be used together with the DB2160 Battery Cooling Station where that cooling workflow applies.

Parts & Equipment Referenced in This Guide

Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.

Shop Related Collections

Canadian Operator FAQ: C12000 Charging Site Safety Guide

Does Ares Acres ship the C12000 charger, DB2160 batteries and cooling stations to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including the C12000 charger, DB2160 batteries and cooling stations referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to use the DJI C12000 Intelligent Power Supply with my DJI Agras in Canada?

The DJI C12000 Intelligent Power Supply itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this charging-site setup different for Canadian operators?

No. The charging-site setup described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
