DJI C12000 specifications and battery compatibility

DJI C12000 Specifications & Battery Compatibility: DB2100, DB1580, DB2160, CSX901-12000 & 12000H

September 17, 2026

DJI C12000 User Guide v1.0 lists two model-number variants and separates their fast- and slow-charging electrical specifications. It also identifies the battery families supported by this guide revision.

Quick Answer: The manual lists DB2100, DB1580 and DB2160 Intelligent Flight Batteries as compatible. Dimensions are 456 × 291 × 107 mm and operating temperature is 0°C to 40°C. Both model-number families support up to 12,000 W fast-charging output and 3,000 W slow-charging output, but the voltage/current ranges differ in the specification table.

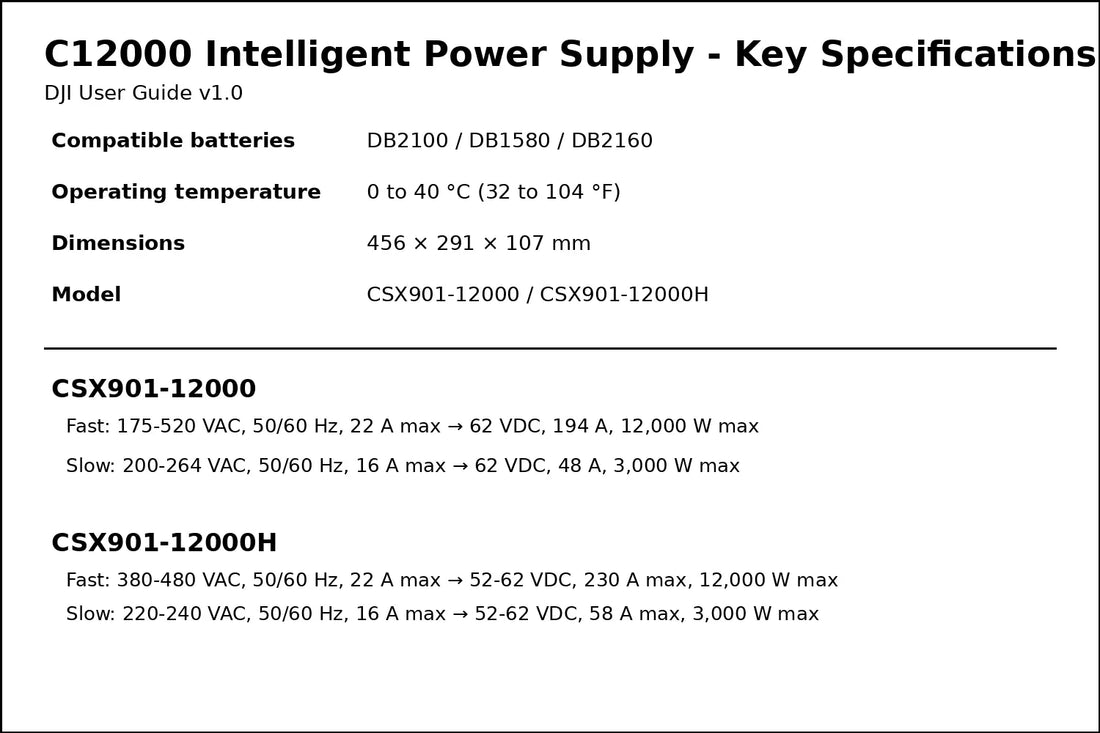

C12000 model specifications battery compatibility input output and dimensions — Specification card built directly from DJI's English table.

Compatible batteries in this manual revision

DJI lists DB2100, DB1580 and DB2160 Intelligent Flight Batteries. DJI also instructs users to visit the official DJI website for the latest battery-compatibility information, so this list should be treated as the compatibility stated by User Guide v1.0, not a permanent universal list.

Ares Acres currently has a verified active page for the DB2160 Intelligent Flight Battery.

Dimensions and temperature

Dimensions are 456 × 291 × 107 mm. Operating temperature is 0°C to 40°C (32°F to 104°F). The separate warning section says the product should be kept in an environment from -5°C to 40°C, which should not be confused with the operating specification.

CSX901-12000

Mode	Input	Output
Fast charging	175-520 VAC, 50/60 Hz, 22 A max	62 VDC, 194 A, 12,000 W max
Slow charging	200-264 VAC, 50/60 Hz, 16 A max	62 VDC, 48 A, 3,000 W max

CSX901-12000H

Mode	Input	Output
Fast charging	380-480 VAC, 50/60 Hz, 22 A max	52-62 VDC, 230 A max, 12,000 W max
Slow charging	220-240 VAC, 50/60 Hz, 16 A max	52-62 VDC, 58 A max, 3,000 W max

DJI adds an important footnote: the displayed input-voltage range for the CSX901-12000H corresponds to the rated-power input range, while the actual supported input-voltage range is the same as the CSX901-12000.
