DJI C12000 Status LED Troubleshooting Guide: Charging, DC Output & AC Input (Canada)

October 4, 2026

🇨🇦 CANADA — DJI C12000 Status LEDs Decoded: Charging, DC Output & AC Input Warnings for Canadian Operators

🇺🇸 Reading from the United States? See the U.S. edition: DJI C12000 Status LED Troubleshooting Guide: Charging, DC Output & AC Input

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It decodes the C12000 charging-channel, DC-output and AC-input LED patterns and shows how to pull fault details through the remote controller. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI C12000 Intelligent Power Supply supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the C12000 charger, DB2160 batteries and charging cables referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

The C12000 uses three separate LED channels, so the first diagnostic step is identifying which channel is signaling. DJI then directs the operator to connect the remote controller whenever a status LED is blinking so the detailed warning or error can be read in the DJI Agras interface.

Quick Answer: LED 1 reports the battery/charging channel, LED 2 reports DC output and LED 3 reports AC input. Four repeating yellow flashes on the DC-output LED mean the C12000 is not activated. A repeating yellow flash indicates a warning on that channel; a repeating red flash indicates an error.

C12000 Figure A with three numbered status LEDs — Figure A identifies LED channels 1, 2 and 3.

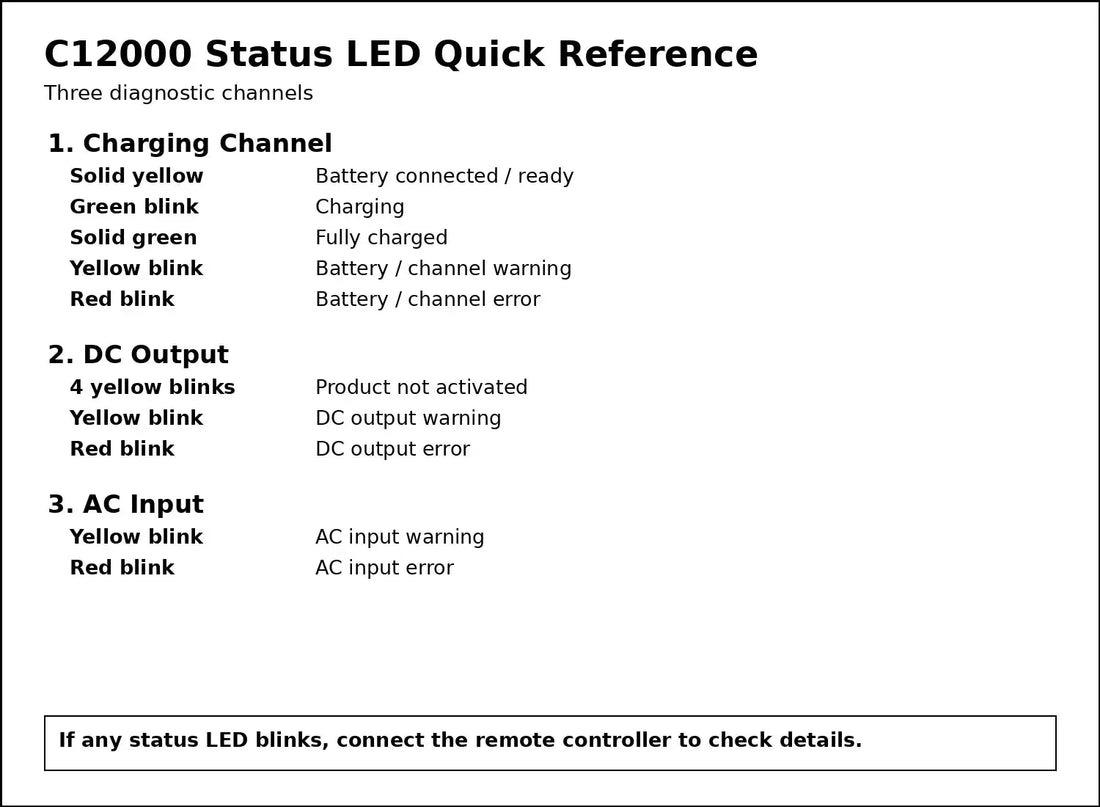

C12000 charging DC output and AC input LED patterns — Visual quick reference built directly from DJI's status table.

Charging Channel Status LED

Pattern	Meaning
Solid yellow	Battery connected and ready for charging
Green blink once continuously	Charging
Solid green	Fully charged
Yellow blink once continuously	Battery / charging-channel warning
Red blink once continuously	Battery / charging-channel error

DC Output Status LED

Pattern	Meaning
Four yellow blinks continuously	Product not activated
Yellow blink once continuously	DC output warning
Red blink once continuously	DC output error

AC Input Status LED

Pattern	Meaning
Yellow blink once continuously	AC input warning
Red blink once continuously	AC input error

What to do when an LED blinks

Connect the remote controller to the C12000 and read the detailed message. The LED identifies the system branch; it does not identify a replaceable part by itself. If the product is abnormal or damaged, DJI recommends contacting official support or an authorized dealer for repair or replacement.

C12000 USB-C connection to DJI Agras remote controller — The same USB-C-to-remote connection used for activation is the path used to retrieve fault details.

Commercial handoff after diagnosis

If the warning is battery-side, inspect the DB2160 battery and the battery-side charging/cooling path. If the concern is clearly with the power supply itself, use the C12000 Intelligent Battery Charger product page rather than assuming a battery fault.

Parts & Equipment Referenced in This Guide

Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.

Shop Related Collections

Canadian Operator FAQ: C12000 Status LED Troubleshooting Guide

Does Ares Acres ship the C12000 charger, DB2160 batteries and charging cables to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including the C12000 charger, DB2160 batteries and charging cables referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to use the DJI C12000 Intelligent Power Supply with my DJI Agras in Canada?

The DJI C12000 Intelligent Power Supply itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this LED troubleshooting different for Canadian operators?

No. The LED troubleshooting described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
