DJI D-RTK 3 AG Firmware Update & Log Export Guide with DJI Assistant 2 (Canada)
🇨🇦 CANADA — DJI D-RTK 3 AG Firmware Update & Log Export with DJI Assistant 2 for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI D-RTK 3 AG Firmware Update & Log Export Guide with DJI Assistant 2
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers updating D-RTK 3 AG firmware and exporting logs with DJI Assistant 2 for MG over USB-C. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D-RTK 3 AG base station supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the D-RTK 3 AG base station and USB-C accessories referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
Firmware maintenance for the D-RTK 3 AG is performed through DJI Assistant 2 for MG. The manual gives a direct five-step update process and separately confirms that the same software can export device logs.
Quick Answer: Fully charge the D-RTK 3 AG, power it on and connect it to a computer with USB-C. Launch DJI Assistant 2, log in, select the device, choose Firmware Update, select the desired firmware version and start the update. Wait for the “Update successful” prompt and automatic restart. Do not unplug the USB-C cable during the update.
Prepare before the update
DJI says the devices should be fully charged before updating. Use the latest software version and make sure the computer remains connected to the internet. It is normal for the D-RTK 3 AG to reboot during the update.
Connect the station to the computer
Power on the station and connect its USB-C port to the computer. Earlier in the manual DJI specifies using a USB-C-to-USB-A cable when using DJI Assistant 2 with the station's USB-C port and a computer USB-A port.

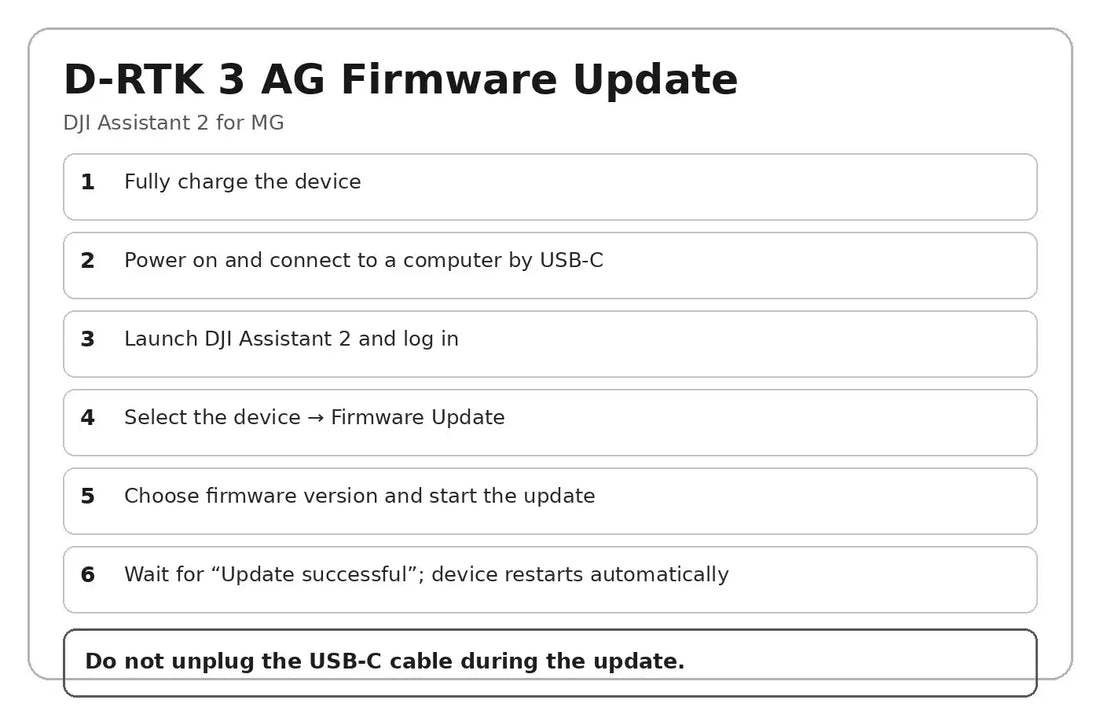

Run DJI Assistant 2
- Launch DJI Assistant 2 and log in with an account.
- Select the D-RTK 3 AG.
- Click Firmware Update on the left side.
- Select the firmware version and start the update.
- Wait for the update-successful prompt and automatic restart.
Do not unplug during the update
The manual explicitly warns not to unplug the USB-C cable while firmware is updating. If the update appears to pause during a reboot, wait for completion rather than interrupting the connection.
Exporting the log
The same maintenance section says users can use DJI Assistant 2 to export the device log. This is the preferred diagnostic data path when support needs device-level information beyond the indicator state.
Parts & Equipment Referenced in This Guide
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related Collections
Related Tutorials
- D-RTK 3 AG Indicator Troubleshooting
- D-RTK 3 AG Storage & Battery Care
- Existing D-RTK 3 Positioning Tutorial
🇺🇸 Reading from the United States? See the U.S. edition: DJI D-RTK 3 AG Firmware Update & Log Export Guide with DJI Assistant 2
Canadian Operator FAQ: D-RTK 3 AG Firmware Update & Log Export Guide with DJI Assistant 2
Does Ares Acres ship the D-RTK 3 AG base station and USB-C accessories to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the D-RTK 3 AG base station and USB-C accessories referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D-RTK 3 AG base station with my DJI Agras in Canada?
The DJI D-RTK 3 AG base station itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this firmware update and log export different for Canadian operators?
No. The firmware update and log export described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI D-RTK 3 AG User Manual v1.0 (2025.07), pp. 3, 5 and 12.
