DJI D14000iE Outdoor Power Source Guide: AC Outlet, Grounding & Battery Power (Canada)
🇨🇦 CANADA — DJI D14000iE Outdoor Power Source: Battery-Backed AC Outlet, Grounding & 50/60 Hz for Canadian Job Sites
🇺🇸 Reading from the United States? See the U.S. edition: DJI D14000iE Outdoor Power Source Guide: AC Outlet, Grounding & Battery Power
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It explains using an Intelligent Flight Battery as the D14000iE outdoor AC power source, including outlet, grounding and LED guidance. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D14000iE generator supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the D14000iE generator, switch panel and controller parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D14000iE can use a connected Intelligent Flight Battery as an outdoor source for AC power without starting the gasoline engine. This is a separate operating mode from generator-driven battery charging.

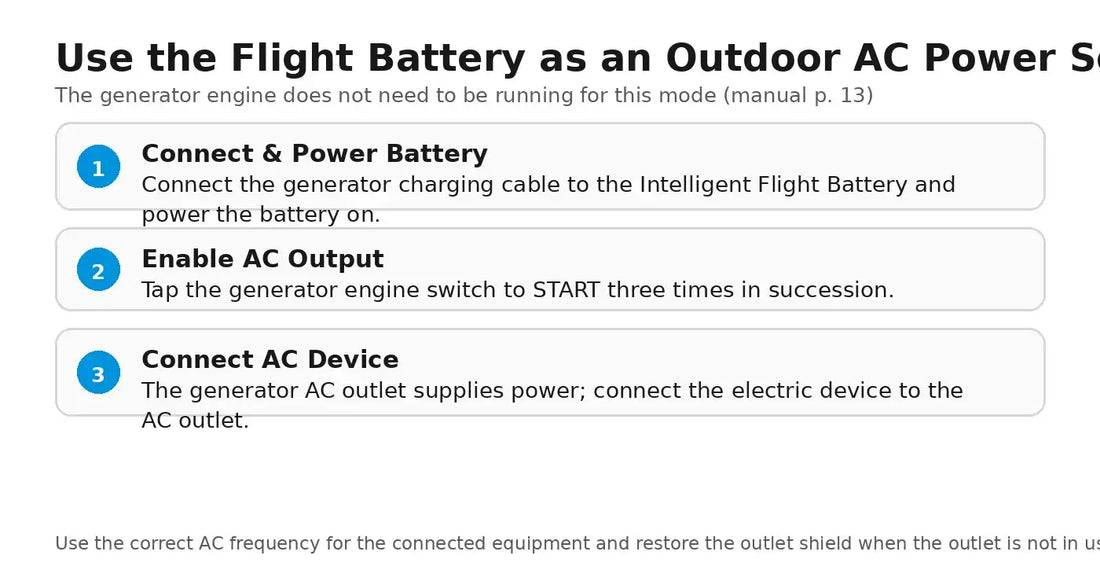

Quick Answer: Connect the generator charging cable to the Intelligent Flight Battery, power the battery on, then tap the generator engine switch to START three times in succession. The AC outlet will supply power and an electric device can be connected. The engine does not need to be started for this mode.
AC outlet and grounding
The operation panel includes the AC outlet and ground terminal. DJI states that the outlet meets an IP44 protection rating and instructs users to reinstall and fasten the outlet shield when not in use. Proper grounding can help avoid electric shock if a connected device fails.
50 Hz vs 60 Hz
The manual notes that rated AC power varies by country/region and that frequency can be configured to 50 Hz or 60 Hz in the app. Select the frequency required by the connected equipment.
Read the AC Module Status LED
Solid yellow means the AC module is ready for use; a repeating green blink means it is in use. A repeating yellow blink is a warning and a repeating red blink is an error.
Do not confuse AC output with battery charging
Battery charging uses the engine-start sequence on p. 12. Battery-backed AC output on p. 13 specifically says there is no need to start the generator. Keeping the workflows separate improves troubleshooting.
After the unit has cooled and is no longer operating, the DJI Agras Universal Generator Protective Cover includes a D14000iE variant.
Parts & Equipment Referenced in This Guide
- DJI Agras T100 D14000iE Inverter Generator
- Universal Generator Protective Cover
- Control Panel Switch Button
- Generator Controller
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related D14000iE Collections
Related D14000iE Tutorials
🇺🇸 Reading from the United States? See the U.S. edition: DJI D14000iE Outdoor Power Source Guide: AC Outlet, Grounding & Battery Power
Canadian Operator FAQ: D14000iE Outdoor Power Source Guide
Does Ares Acres ship the D14000iE generator, switch panel and controller parts to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the D14000iE generator, switch panel and controller parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D14000iE generator with my DJI Agras in Canada?
The DJI D14000iE generator itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this outdoor AC power procedure different for Canadian operators?
No. The outdoor AC power procedure described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI D14000iE Multifunctional Inverter Generator User Manual v1.0 (2025.06), pp. 7-9 and 13.
