DJI D14000iE Spark Plug Guide: F6RTC Gap, Cleaning, Torque & Replacement (Canada)
🇨🇦 CANADA — DJI D14000iE Spark Plug Service: F6RTC Gap, Cleaning, Torque & Replacement for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI D14000iE Spark Plug Guide: F6RTC Gap, Cleaning, Torque & Replacement
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers the F6RTC spark plug: inspection, 0.6–0.8 mm gap, cleaning and 20–25 N·m installation torque. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D14000iE generator supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks D14000iE ignition coils, spark plugs and the maintenance pack referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D14000iE manual specifies the spark-plug model, inspection condition, electrode gap and installation torque. That makes spark-plug service one of the clearest component-level maintenance procedures in the generator manual.
Quick Answer: DJI identifies the original spark plug as F6RTC. With the generator stopped and fully cooled, remove the plug with the dedicated socket. Replace it if the insulator or sealing gasket is broken. Clean carbon/deposits with a stiff wire brush, set the electrode gap to 0.6-0.8 mm, hand-thread the plug two to three rotations, then tighten to 20-25 N·m.
Remove and inspect
Stop the generator and allow it to cool completely. Remove the spark plug with the dedicated spark-plug socket. Replace the plug immediately if the insulator or sealing gasket is broken.
Clean carbon and set the gap
Remove carbon or other deposits with a stiff wire brush. Adjust the electrode until the gap is within 0.6-0.8 mm. DJI states that correct gap and freedom from deposits are necessary for proper engine operation.
Install and torque
Thread the spark plug into the engine by hand for two to three rotations before tightening with the dedicated socket. The recommended final torque is 20-25 N·m. DJI warns that a loose plug can cause engine overheating, while over-tightening can damage the engine threads.
Use the correct plug model
The original plug model identified by DJI is F6RTC. The manual warns that installing the wrong type can damage the engine.
If the ignition problem remains
A serviced spark plug does not prove every ignition component is healthy. If remote-controller diagnostics and engine symptoms point beyond the plug, the exact active catalog includes the D14000iE Zongshen Ignition Coil with Trigger. Use that path only after plug condition, fuel supply and basic pre-operation checks are understood.
Parts & Equipment Referenced in This Guide
- Ignition Coil with Trigger
- D14000iE Preventive Maintenance Pack
- DJI Agras T100 D14000iE Inverter Generator
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related D14000iE Collections
Related D14000iE Tutorials
🇺🇸 Reading from the United States? See the U.S. edition: DJI D14000iE Spark Plug Guide: F6RTC Gap, Cleaning, Torque & Replacement
Canadian Operator FAQ: D14000iE Spark Plug Guide
Does Ares Acres ship D14000iE ignition coils, spark plugs and the maintenance pack to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including D14000iE ignition coils, spark plugs and the maintenance pack referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D14000iE generator with my DJI Agras in Canada?
The DJI D14000iE generator itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this spark-plug service different for Canadian operators?
No. The spark-plug service described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note

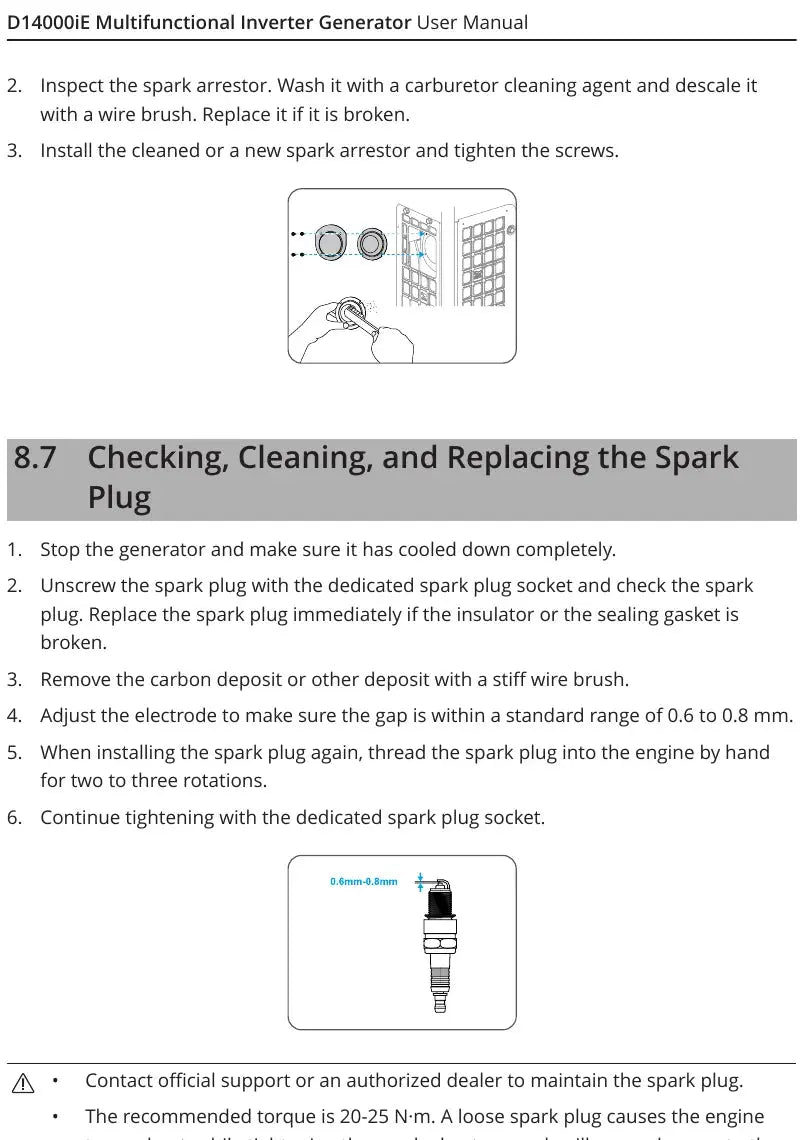

Primary source: DJI D14000iE Multifunctional Inverter Generator User Manual v1.0 (2025.06), pp. 17 and 20-21.
