DJI C12000 Fast Charging Guide: 380V Three-Phase, L1/L2/L3/PE & 12 kW Output (Canada)

October 4, 2026

🇨🇦 CANADA — DJI C12000 Fast Charging: 380 V Three-Phase, L1/L2/L3/PE Wiring & 12 kW Output for Canadian Electricians & Operators

🇺🇸 Reading from the United States? See the U.S. edition: DJI C12000 Fast Charging Guide: 380V Three-Phase, L1/L2/L3/PE & 12 kW Output

This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers the 380 V three-phase fast-charging procedure, the 15 kW supply requirement, L1/L2/L3/PE wiring and air-cooled battery charging, work that belongs to a licensed electrician in every province. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI C12000 Intelligent Power Supply supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the C12000 charger, cooling stations and DB2160 batteries referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

Fast charging is the C12000's high-power operating mode. Because it involves three-phase mains wiring, DJI restricts the fast-charging connection to qualified electricians wearing insulated gloves.

Quick Answer: Fast charging requires a 380 V three-phase supply with at least 15 kW output. Turn the air circuit breaker OFF before connection. Install the fast charging cable and safety pins. A qualified electrician connects L1, L2 and L3 to the hot terminals and PE to ground. Turn the breaker ON only after wiring is complete. Connect the charging cable to the air-cooled heat sink before placing the battery into the heat sink. After charging, turn the breaker OFF before disconnecting the fast charging cable.

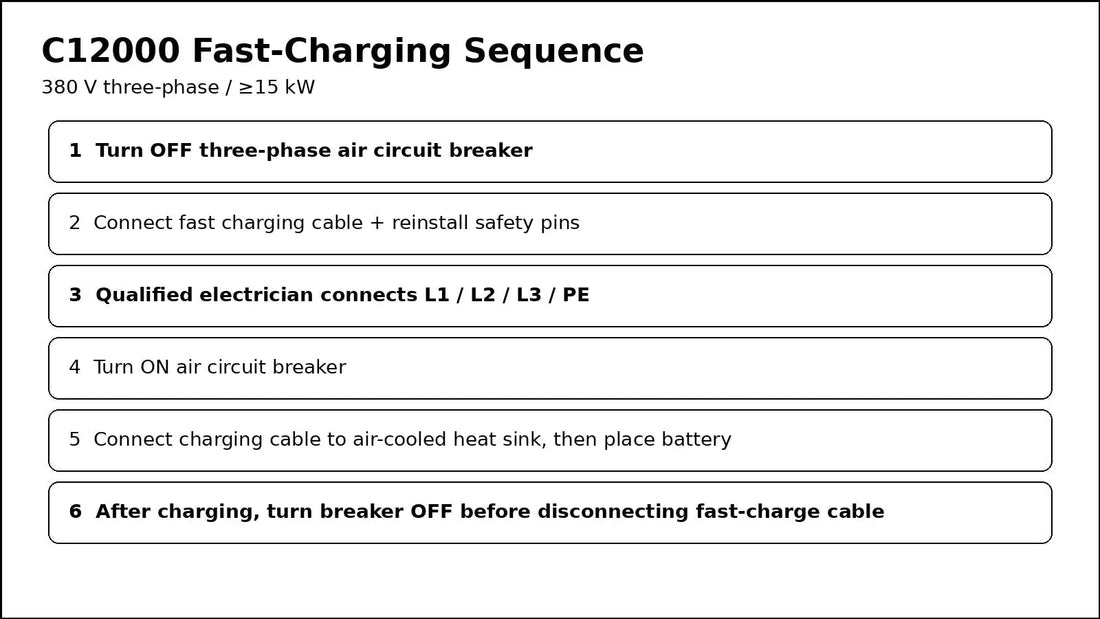

C12000 six step fast charging procedure — Fast-charge sequence distilled from DJI's six-step procedure.

Electrical qualification requirement

DJI states that only qualified electricians wearing insulated gloves can perform the fast-charging connection. The operator should also consult a local electrician to verify that the three-phase wiring is correct and complies with local regulations.

1. Turn off the air circuit breaker

Before handling the fast-charging connection, turn off the air circuit breaker of the three-phase AC power supply.

2. Install the fast charging cable

C12000 fast charging cable installation with safety pins — Figure C shows removal of the safety pins, cable insertion and reinstallation of the pins.

Remove the safety pins from the fast charging cable, connect the cable to the C12000 and reinstall the safety pins.

3. Connect L1, L2, L3 and PE

C12000 three phase wiring diagram L1 L2 L3 PE — Figure D: three hot wires L1/L2/L3 plus protective earth PE.

DJI says the three hot wires labeled L1, L2 and L3 connect to the hot terminals and the PE wire connects to ground. Do not connect the ground wire to a neutral terminal or hot terminal. DJI warns this can damage the product or create serious hazards such as fire.

4. Turn the breaker on

Only after the connection is complete should the air circuit breaker be turned back on.

5. Connect the battery through the air-cooled heat sink

C12000 charging cable connected to air cooled heat sink before battery insertion — Figure E: connect the charging cable to the air-cooled heat sink before placing the battery into the heat sink.

The current T100 battery-side equipment includes the DB2160 Battery Cooling Station, Battery Air-Cooling System and DB2160 Intelligent Flight Battery.

6. Shutdown order after charging

When charging is finished, turn off the air circuit breaker before disconnecting the fast charging cable from the C12000.

Parts & Equipment Referenced in This Guide

Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.

Shop Related Collections

Canadian Operator FAQ: C12000 Fast Charging Guide

Does Ares Acres ship the C12000 charger, cooling stations and DB2160 batteries to Canada?

Yes. Ares Acres ships genuine DJI Agras OEM parts, including the C12000 charger, cooling stations and DB2160 batteries referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.

Do I need an SFOC to use the DJI C12000 Intelligent Power Supply with my DJI Agras in Canada?

The DJI C12000 Intelligent Power Supply itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.

Is this fast-charging different for Canadian operators?

No. The fast-charging described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
