DJI C12000 Specifications & Battery Compatibility: DB2100, DB1580, DB2160, CSX901-12000 & 12000H (Canada)
🇨🇦 CANADA — DJI C12000 Specifications & Battery Compatibility: DB2100, DB1580, DB2160 & CSX901 Models for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI C12000 Specifications & Battery Compatibility: DB2100, DB1580, DB2160, CSX901-12000 & 12000H
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It covers DB2100, DB1580 and DB2160 compatibility, the CSX901-12000 and 12000H input and output ranges, dimensions and limits. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI C12000 Intelligent Power Supply supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the C12000 charger and compatible DJI Agras batteries referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.

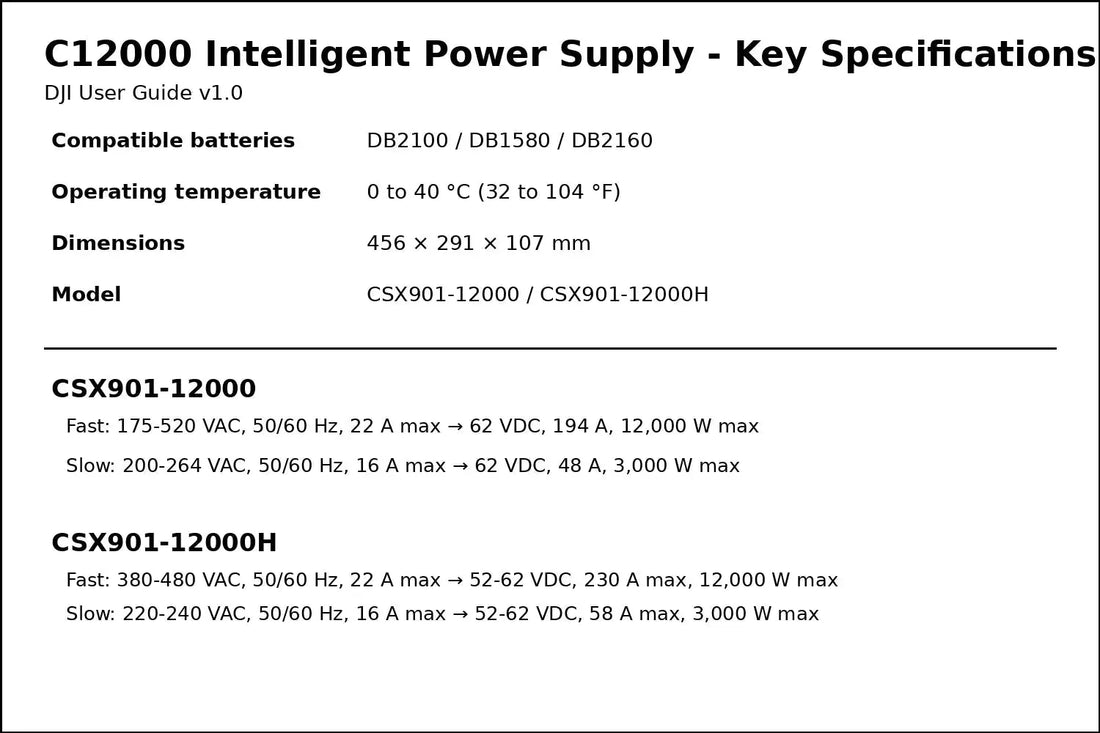

DJI C12000 User Guide v1.0 lists two model-number variants and separates their fast- and slow-charging electrical specifications. It also identifies the battery families supported by this guide revision.
Quick Answer: The manual lists DB2100, DB1580 and DB2160 Intelligent Flight Batteries as compatible. Dimensions are 456 × 291 × 107 mm and operating temperature is 0°C to 40°C. Both model-number families support up to 12,000 W fast-charging output and 3,000 W slow-charging output, but the voltage/current ranges differ in the specification table.
Compatible batteries in this manual revision
DJI lists DB2100, DB1580 and DB2160 Intelligent Flight Batteries. DJI also instructs users to visit the official DJI website for the latest battery-compatibility information, so this list should be treated as the compatibility stated by User Guide v1.0, not a permanent universal list.
Ares Acres currently has a verified active page for the DB2160 Intelligent Flight Battery.
Dimensions and temperature
Dimensions are 456 × 291 × 107 mm. Operating temperature is 0°C to 40°C (32°F to 104°F). The separate warning section says the product should be kept in an environment from -5°C to 40°C, which should not be confused with the operating specification.
CSX901-12000
| Mode | Input | Output |
|---|---|---|
| Fast charging | 175-520 VAC, 50/60 Hz, 22 A max | 62 VDC, 194 A, 12,000 W max |
| Slow charging | 200-264 VAC, 50/60 Hz, 16 A max | 62 VDC, 48 A, 3,000 W max |
CSX901-12000H
| Mode | Input | Output |
|---|---|---|
| Fast charging | 380-480 VAC, 50/60 Hz, 22 A max | 52-62 VDC, 230 A max, 12,000 W max |
| Slow charging | 220-240 VAC, 50/60 Hz, 16 A max | 52-62 VDC, 58 A max, 3,000 W max |
DJI adds an important footnote: the displayed input-voltage range for the CSX901-12000H corresponds to the rated-power input range, while the actual supported input-voltage range is the same as the CSX901-12000.
Parts & Equipment Referenced in This Guide
- C12000 Intelligent Battery Charger
- DB2160 Intelligent Flight Battery
- DB2160 Battery Cooling Station
- Battery Air-Cooling System
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related Collections
Related Tutorials
🇺🇸 Reading from the United States? See the U.S. edition: DJI C12000 Specifications & Battery Compatibility: DB2100, DB1580, DB2160, CSX901-12000 & 12000H
Canadian Operator FAQ: C12000 Specifications & Battery Compatibility
Does Ares Acres ship the C12000 charger and compatible DJI Agras batteries to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the C12000 charger and compatible DJI Agras batteries referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI C12000 Intelligent Power Supply with my DJI Agras in Canada?
The DJI C12000 Intelligent Power Supply itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this specification reference different for Canadian operators?
No. The specification reference described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI C12000 Intelligent Power Supply User Guide v1.0 (2025), Specifications table and footnotes.
