DJI D-RTK 3 AG Indicator Troubleshooting: Power, GNSS, Firmware, Linking & Reset (Canada)
🇨🇦 CANADA — DJI D-RTK 3 AG Indicators Decoded: Power, GNSS, Firmware, Linking & Reset for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI D-RTK 3 AG Indicator Troubleshooting: Power, GNSS, Firmware, Linking & Reset
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It decodes the indicator states for battery level, satellite count, activation, firmware updating, linking and password reset. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D-RTK 3 AG base station supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks the D-RTK 3 AG base station and replacement antennas referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D-RTK 3 AG exposes several operating states through the power and GNSS indicators. The manual also combines those indicators to show firmware updates, linking and password resets.

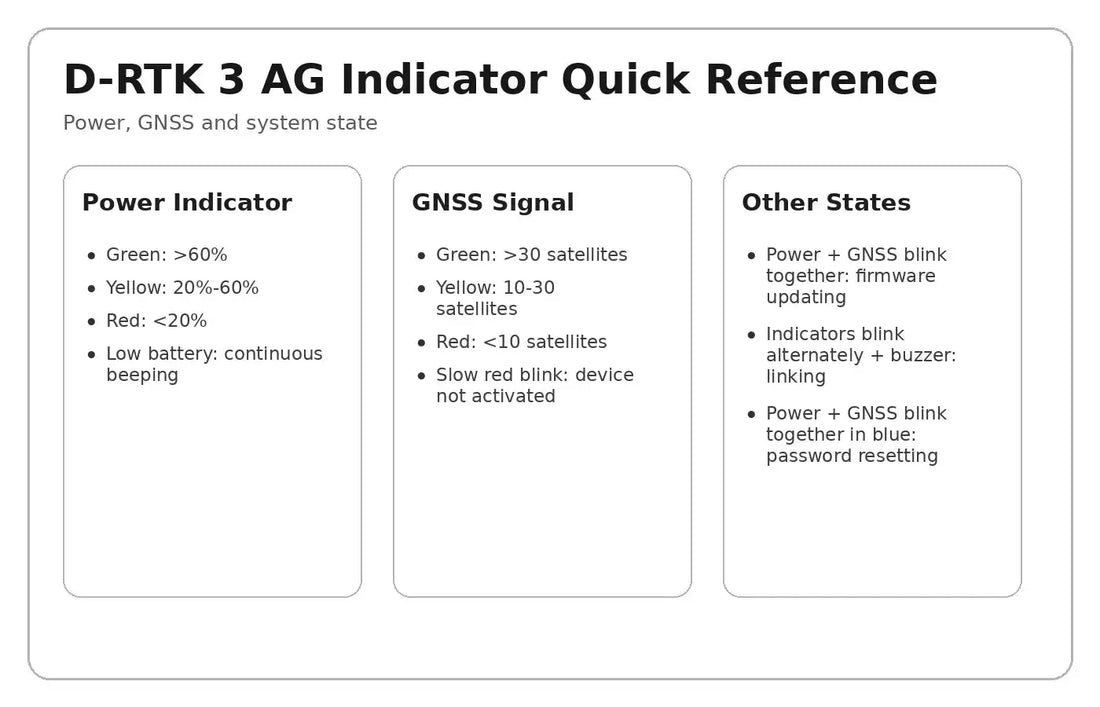

Quick Answer: Power-indicator colours correspond to battery level: green above 60%, yellow from 20%-60% and red below 20%. The GNSS indicator uses satellite count: green above 30 satellites, yellow at 10-30 and red below 10. A slowly blinking red GNSS indicator means the device is not activated. When low battery occurs, the buzzer emits continuous beeping.
Power indicator
The manual adds two useful charging behaviours: when low battery occurs, the buzzer emits continuous beeping; during charging, the power indicator blinks quickly when charging power is sufficient and slowly when it is insufficient.
GNSS signal indicator
| GNSS state | Meaning |
|---|---|
| Green | More than 30 satellites received |
| Yellow | 10-30 satellites received |
| Red | Fewer than 10 satellites received |
| Slow red blink | Device is not activated |
Firmware, linking and password reset states
The manual lists three combined states: indicators blinking simultaneously during firmware updating; indicators blinking alternately with continuous buzzer during linking; and simultaneous blue indicator blinking during password reset.
Use the indicator as a branch, not a parts diagnosis
A red GNSS indication can reflect satellite availability or activation state. It does not by itself identify a failed antenna or internal module. First check activation, site selection, antenna obstruction and environmental interference before moving toward hardware replacement.
The direct product path is the DJI Agras T100 D-RTK 3 High-Precision GNSS Mobile Station. The store also carries aircraft-side RTK/navigation parts, but this article does not substitute those for D-RTK 3 station components.
Parts & Equipment Referenced in This Guide
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related Collections
Related Tutorials
- D-RTK 3 AG First Charge & Activation
- D-RTK 3 AG Site Selection & Tripod Setup
- D-RTK 3 AG Firmware Update & Log Export
🇺🇸 Reading from the United States? See the U.S. edition: DJI D-RTK 3 AG Indicator Troubleshooting: Power, GNSS, Firmware, Linking & Reset
Canadian Operator FAQ: D-RTK 3 AG Indicator Troubleshooting
Does Ares Acres ship the D-RTK 3 AG base station and replacement antennas to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the D-RTK 3 AG base station and replacement antennas referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D-RTK 3 AG base station with my DJI Agras in Canada?
The DJI D-RTK 3 AG base station itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this indicator troubleshooting different for Canadian operators?
No. The indicator troubleshooting described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI D-RTK 3 AG User Manual v1.0 (2025.07), pp. 9-10.
