DJI Agras T100 Dual-Battery Spraying System Installation Guide

September 17, 2026

The DJI T100 Dual-Battery Spraying System Product Information v1.0 includes a five-step installation illustration showing how the system is positioned on the T100 aircraft, secured at the mounting interface, and connected at the aircraft-side cable connection. The source does not provide a long written installation chapter, so this guide follows the manufacturer's diagram rather than inventing additional disassembly steps.

Quick Answer: Use the five-step DJI illustration as the physical installation reference. Position the dual-battery spraying-system assembly on the T100, secure the illustrated side mounting interface, then complete the aircraft-side cable connection shown in steps 4-5. During the process, DJI requires all cable connections to be correct and secure and warns operators to avoid damaging the cables.

DJI T100 Dual-Battery Spraying System complete five-step installation illustration — Complete installation figure from DJI T100 Dual-Battery Spraying System Product Information v1.0.

Steps 1-3: Position and secure the system

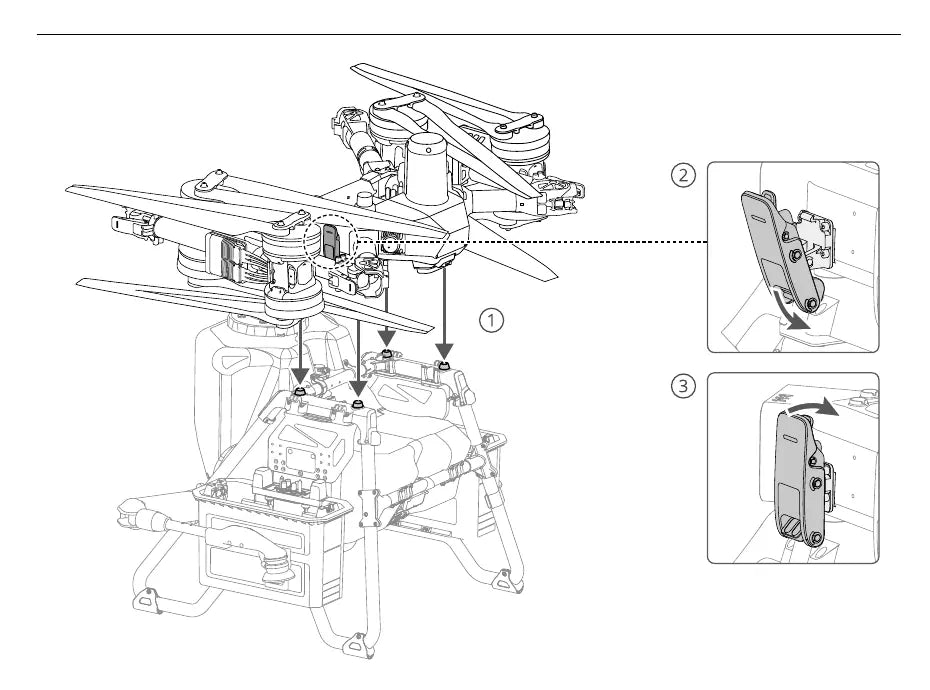

T100 dual-battery spraying system installation steps 1 2 and 3 — The upper portion of the manufacturer figure shows the assembly being positioned on the aircraft and the side mounting interface being rotated/seated into position.

The diagram shows the system being brought into the aircraft mounting area and secured at the illustrated side interface. Because the source uses a pictorial sequence without written torque values or hardware callouts, this article intentionally does not invent fastener specifications.

Steps 4-5: Complete the aircraft-side cable connection

T100 dual-battery spraying system cable connection steps 4 and 5 — The lower part of the manufacturer figure shows the cable connector being joined and seated at the aircraft-side connection point.

DJI's warning section requires cable connections to be correct and secure and tells operators to work carefully to avoid cable damage. Use the connector orientation shown in the manufacturer figure and do not force a misaligned connection.

Do not disassemble factory-installed components

The source warns against disassembling parts that were already mounted before shipping. Doing so can reduce the system's ingress-protection performance.
