DJI T100 versus T70 Series mist nozzle package comparison

DJI T100/T70 Series Mist Nozzle Package Guide: Parts, Installation, Calibration & Safety

September 18, 2026

This visual hub reorganizes DJI T100/T70 Series Mist Nozzle Package Product Information v1.0 into four operator-facing topics: what is in the T100 package, what is in the T70 Series package, what DJI requires after installation, and how the additional sprinklers change vision-system and cleaning requirements.

Quick Answer: T100 and T70 Series use different package lists in this document. T100 includes two mist sprinkler kits that each include a solenoid valve, two spray-lance brackets, two inner hoses, two short hoses and one inner adapter cable. T70 Series includes two sprinkler kits with solenoid valves, two without, two front hoses, two short hoses and two adapter cables. DJI requires authorized-dealer installation, firm mounting, flow calibration in DJI Agras, vision-camera cleaning before/after spraying, and landing-gear residue cleanup.

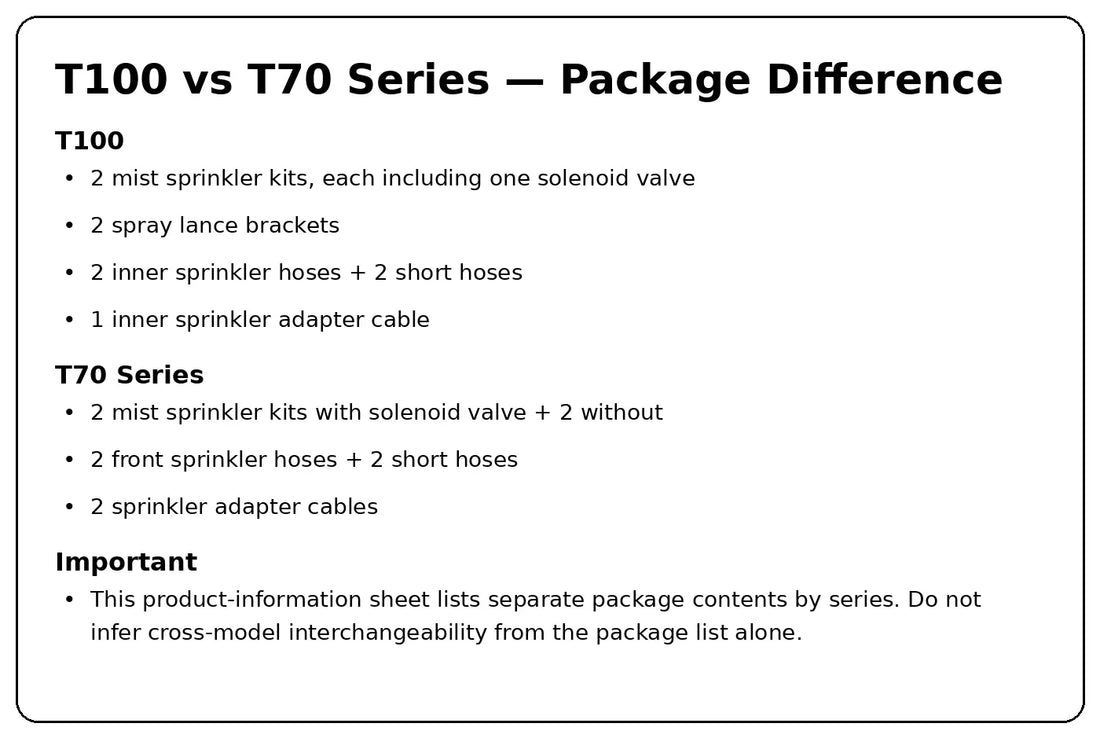

T100 and T70 Series mist nozzle package difference visual — Package-level comparison derived from DJI's separate T100 and T70 Series lists. It does not imply cross-model part interchangeability.

Mist nozzle visual manual index

T100 package

DJI T100 mist nozzle package contents manufacturer diagram — T100: two mist sprinkler kits with one solenoid valve each, two spray-lance brackets, two inner hoses, two short hoses, one inner adapter cable and accessories.

T70 Series package

DJI T70 Series mist nozzle package contents manufacturer diagram — T70 Series: two kits with solenoid valves, two without, two front hoses, two short hoses, two adapter cables and accessories.

Installation and calibration

DJI mist nozzle authorized dealer secure mounting flow calibration vision cleaning landing gear checklist — The manufacturer warning section becomes the operational post-installation checklist.

DJI says installation can only be completed by an officially authorized dealer. After installation, all components must be mounted correctly and firmly, and flow calibration in DJI Agras is required. Improper mounting can affect aircraft ingress-protection performance.

Vision and cleaning

DJI mist nozzle vision system cleaning and landing gear residue workflow — Clean vision cameras before and after spraying, fly cautiously around spray droplets, and clean landing-gear residue.

Official DJI tutorial-video paths

The source provides separate official installation-video links: T100 tutorial and T70 tutorial. Those links do not override DJI's authorized-dealer installation requirement.
