🇨🇦 CANADA — DJI D14000iE Operation Panel & Status LEDs: Charging, AC-Module & Generator Warnings Decoded for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI D14000iE Operation Panel & Status LED Troubleshooting Guide
This Canadian edition is written for Canadian DJI Agras operators across Canada, from the Prairie grain belt of Saskatchewan, Alberta and Manitoba to the row crops of Ontario and Quebec and the orchards and vineyards of British Columbia and Niagara. It decodes the D14000iE charging, AC-module and generator LED patterns and connects each warning to the correct diagnostic branch. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the aircraft this DJI D14000iE generator supports falls into Transport Canada’s medium RPAS class (25–150 kg) and flies on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope, and pricing is shown in Canadian dollars. Ares Acres stocks D14000iE controllers, switch panels and generator parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The D14000iE has three status-light channels. The charging-channel LED reports the battery/charging path, the AC-module LED reports AC output, and the generator LED reports generator activation, warnings, errors and maintenance.
Quick Answer: Identify LED 1, 2 or 3 before diagnosing. Four yellow generator flashes mean the generator is not activated. Four red generator flashes mean maintenance is required. DJI instructs operators to connect the remote controller whenever a warning, error or maintenance indication needs more detail.
Operation panel
The engine switch starts or stops the generator. The USB-C port connects the remote controller for firmware update and log export. The AC outlet is IP44-rated according to the manual; reinstall and fasten the shield when it is not in use. The ground terminal is the connection point for proper grounding.
If the physical start/stop control itself is damaged, see the D14000iE Control Panel Switch Button. The broader electronic-control path includes the D14000iE Generator Controller.

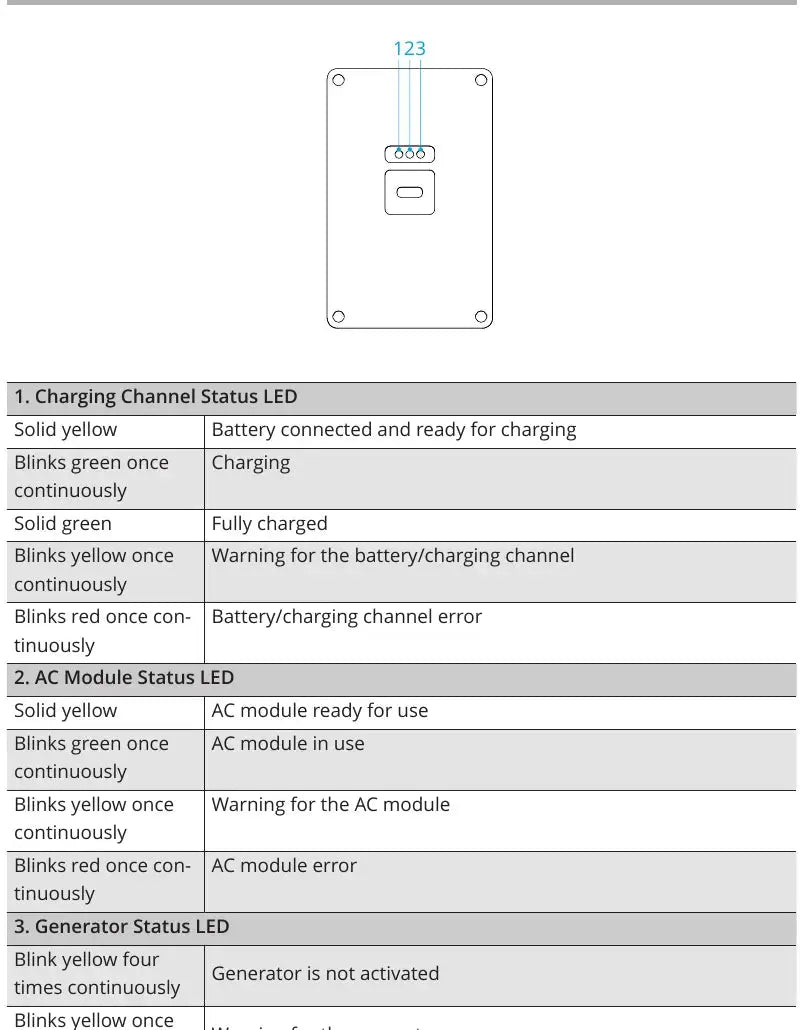

Charging Channel Status LED
| Pattern | Meaning |
|---|---|
| Solid yellow | Battery connected and ready for charging |
| Green blink once continuously | Charging |
| Solid green | Fully charged |
| Yellow blink once continuously | Battery/charging-channel warning |
| Red blink once continuously | Battery/charging-channel error |
AC Module Status LED
Solid yellow means ready for use; a repeating green blink means in use; repeating yellow means warning; repeating red means error.
Generator Status LED
Four repeating yellow flashes mean not activated. A single repeating yellow flash is a warning. A single repeating red flash is a generator error. Four repeating red flashes mean generator maintenance is required.
Do not replace parts from LED colour alone
An LED identifies the system branch, not the failed component. If diagnostics narrow a no-start condition to cranking hardware, exact active parts include the D14000iE Electric Starter and Starter Motor Relay. Capture the remote-controller message before selecting a part.
Parts & Equipment Referenced in This Guide
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related D14000iE Collections
Related D14000iE Tutorials
🇺🇸 Reading from the United States? See the U.S. edition: DJI D14000iE Operation Panel & Status LED Troubleshooting Guide
Canadian Operator FAQ: D14000iE Operation Panel & Status LED Troubleshooting Guide
Does Ares Acres ship D14000iE controllers, switch panels and generator parts to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including D14000iE controllers, switch panels and generator parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to use the DJI D14000iE generator with my DJI Agras in Canada?
The DJI D14000iE generator itself needs no aviation authorization. The DJI Agras aircraft it supports falls into Transport Canada’s medium RPAS class (25–150 kg) under the November 2025 rules and is flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this LED troubleshooting different for Canadian operators?
No. The LED troubleshooting described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI D14000iE Multifunctional Inverter Generator User Manual v1.0 (2025.06), pp. 7-9 and 12.
