DJI Agras T100 Dual-Battery Spraying System Installation Guide (Canada)
🇨🇦 CANADA — DJI Agras T100 Dual-Battery Spraying System Installation: Five-Step Conversion for Canadian Broad-Acre Spraying
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 Dual-Battery Spraying System Installation Guide
This Canadian edition is written for Canadian DJI Agras operators on broad-acre canola, spring wheat, barley and pulse ground across Saskatchewan, Alberta and Manitoba. It covers installing the Dual-Battery Spraying System using the five-step manufacturer diagram, the configuration that stretches tank volume for long Prairie passes. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T100 falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Pesticide application by RPAS is permitted for aerial-registered products under the Health Canada PMRA aerial label directions and your provincial applicator licence — check the label and your provincial rules. Ares Acres stocks the T100 dual-battery spraying system and spraying parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The DJI T100 Dual-Battery Spraying System Product Information v1.0 includes a five-step installation illustration showing how the system is positioned on the T100 aircraft, secured at the mounting interface, and connected at the aircraft-side cable connection. The source does not provide a long written installation chapter, so this guide follows the manufacturer's diagram rather than inventing additional disassembly steps.
Quick Answer: Use the five-step DJI illustration as the physical installation reference. Position the dual-battery spraying-system assembly on the T100, secure the illustrated side mounting interface, then complete the aircraft-side cable connection shown in steps 4-5. During the process, DJI requires all cable connections to be correct and secure and warns operators to avoid damaging the cables.

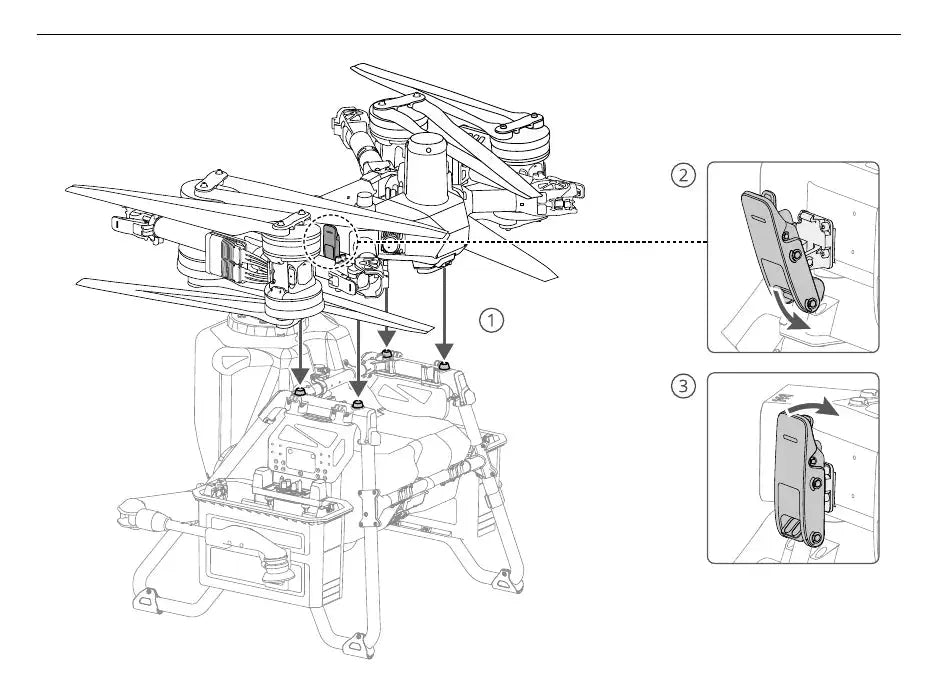

Steps 1-3: Position and secure the system
The diagram shows the system being brought into the aircraft mounting area and secured at the illustrated side interface. Because the source uses a pictorial sequence without written torque values or hardware callouts, this article intentionally does not invent fastener specifications.
Steps 4-5: Complete the aircraft-side cable connection
DJI's warning section requires cable connections to be correct and secure and tells operators to work carefully to avoid cable damage. Use the connector orientation shown in the manufacturer figure and do not force a misaligned connection.
Do not disassemble factory-installed components
The source warns against disassembling parts that were already mounted before shipping. Doing so can reduce the system's ingress-protection performance.
Related T100 spraying-system parts
The current catalog does not expose a separate active product page for the LS100-DB dual-battery spraying system itself. For service around the broader T100 spraying system, use the DJI Agras T100 Spraying System Parts collection. Verified related items include the T100 Centrifugal Spray Lance Cable, T100 Sprinkler Adapter Cable, and T100 Spray System Critical Spares Pack.
Parts & Equipment Referenced in This Guide
- DJI Agras T100
- T100 Centrifugal Spray Lance Cable
- T100 Sprinkler Adapter Cable
- T100 Spray System Critical Spares Pack
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related Collections
Related Tutorials
- T100 Mapping & Spraying Operations Guide
- How to Install the DJI T100 Mist Spray Set
- Dual-Battery Spraying Preflight & Safety Checklist
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 Dual-Battery Spraying System Installation Guide
Canadian Operator FAQ: T100 Dual-Battery Spraying System Installation Guide
Does Ares Acres ship the T100 dual-battery spraying system and spraying parts to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the T100 dual-battery spraying system and spraying parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to fly the DJI Agras T100 in Canada?
Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T100 falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this dual-battery installation different for Canadian operators?
No. The dual-battery installation described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI T100 Dual-Battery Spraying System Product Information v1.0 (2025), manufacturer installation figure and English Warnings section.
