DJI Agras T100 150L Screw Feeder Replacement Guide: XL, L, M & S Augers (Canada)
🇨🇦 CANADA — DJI Agras T100 150L Screw Feeder Replacement: XL, L, M & S Augers for Canadian Fertilizer, Canola & Cover-Crop Seed
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Screw Feeder Replacement Guide: XL, L, M & S Augers
This Canadian edition is written for Canadian DJI Agras operators on broad-acre canola, spring wheat, barley and pulse ground across Saskatchewan, Alberta and Manitoba. It covers swapping the XL, L, M and S screw feeders and the DJI particle-size range each one is meant for. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T100 falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Ares Acres stocks T100 extra-large, large, medium and small augers referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The 150L Spreading System can use different screw-feeder models according to the characteristics of the material being spread. DJI's Product Information v1.0 provides both a feeder-selection table and Figure B showing the replacement sequence.
Quick Answer: Choose the screw feeder according to dry-material diameter: XL 0.5-10 mm, L 4-10 mm, M 4-6 mm, and S 0.5-4 mm. The XL feeder is installed in the spreader before delivery and the M feeder is included in the package. When replacing a feeder, avoid pulling or damaging the motor cable, clean residue from the external motor cap and inside the spreader, and use the optional feeder-kit instructions when installing the S feeder.

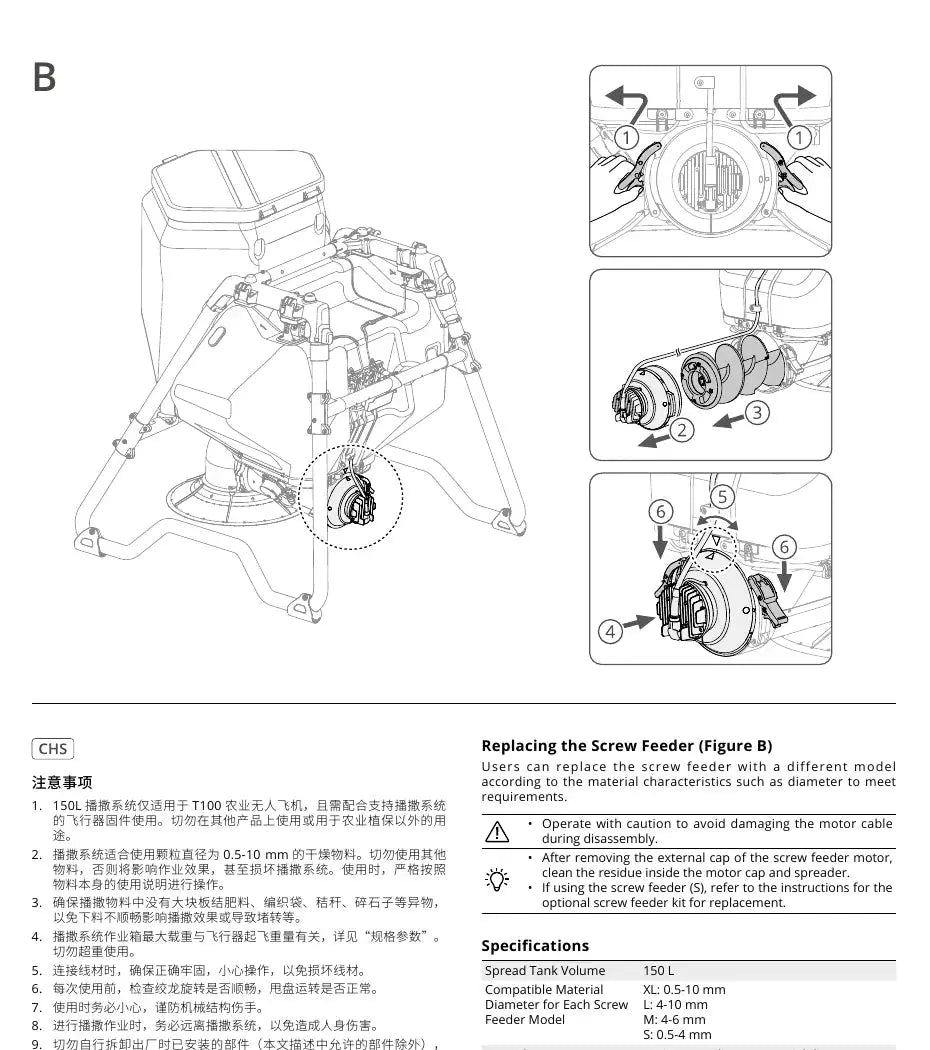

What Figure B shows
The visual sequence shows the feeder-area retainers being opened, the motor-side cap and feeder assembly being withdrawn, and the assembly being reinstalled and secured. Follow the Figure B order and avoid placing tension on the motor cable during removal.
Clean residue before installing the next feeder
After the external cap of the screw-feeder motor is removed, DJI instructs the user to clean residue inside the motor cap and the spreader. This is important because retained material can interfere with the next feeder installation or material discharge.
Use the S feeder with its optional-kit instructions
The product information specifically says that if the small S feeder is used, follow the instructions supplied with the optional screw-feeder kit for replacement. This article does not substitute for those separate S-kit instructions.
Direct product links by feeder size
For the ranges stated in this manual, the catalog paths are the T100 Extra Large Auger (XL), T100 Large Auger (L), T100 Medium Auger (M), and T100 Small Auger (S).
Parts & Equipment Referenced in This Guide
- Extra Large Auger (XL)
- Large Auger (L)
- Medium Auger (M)
- Small Auger (S)
- T100 Auger Motor
- T100 Auger Motor Service Kit
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related T100 Collections
Related T100 Tutorials
- T100 Auger Size Guide for Material Selection
- T100 Spreading System Programming & Calibration
- 150L Material Size & Spreading Range Guide
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Screw Feeder Replacement Guide: XL, L, M & S Augers
Canadian Operator FAQ: T100 150L Screw Feeder Replacement Guide
Does Ares Acres ship T100 extra-large, large, medium and small augers to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including T100 extra-large, large, medium and small augers referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to fly the DJI Agras T100 in Canada?
Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T100 falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this screw-feeder replacement different for Canadian operators?
No. The screw-feeder replacement described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI 150L Spreading System Product Information v1.0 (2025), Figure B and Specifications.
