DJI Agras T100 Spreading System Parts

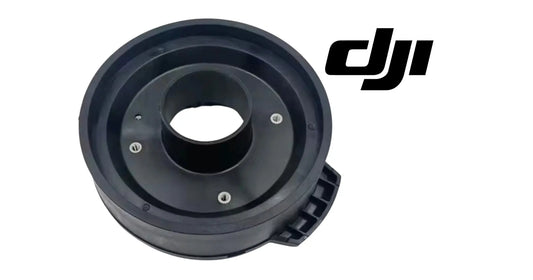

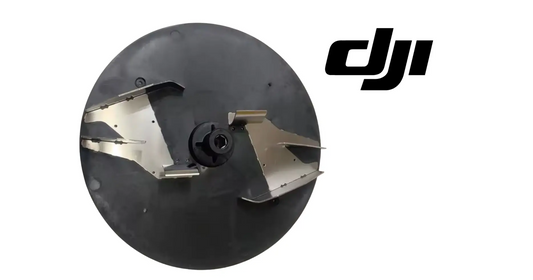

With the spreading system fitted, the DJI Agras T100 meters dry material from the 150L spread tank through a screw-feeder auger to a spinner disk. This collection stocks genuine DJI OEM T100 spreading parts: small, medium, large and extra-large augers with bushings, auger motors, motor bases and housing assemblies, auger sensors, spinner disks, spinner disk motors and cables, dosing tunnels, spreader sealing diaphragms, spread tank lids and the stainless steel fertilizer and manure spread filter. DJI specifies feeder sizes by material diameter and asks that the screw feeder and spinner disc be checked before each use. Ares Acres ships from U.S.-based fulfillment and can help you pick the right auger.

Genuine DJI OEM parts In-stock parts ship same day USA compatibility guarantee31 parts in this collection

Other DJI T100 Parts systems

Browse another system

T100 Spraying System Parts

T100 Spraying System Parts

Impeller pumps, centrifugal nozzles, flow meters, hoses, spray tanks

76 parts →
T100 Propulsion Parts

T100 Propulsion Parts

15516 motors, ESC modules, propellers, aircraft arms, prop clamps

42 parts →
Generator & Charger (14000iE)

Generator & Charger (14000iE)

28 parts →
T100 Battery & Power Parts

T100 Battery & Power Parts

DB2160 batteries, battery motherboards, distribution boards, sliders

35 parts →
T100 Radar, RTK & Sensor Parts

T100 Radar, RTK & Sensor Parts

Radar modules, RTK antennas, LiDAR, FPV modules, weight sensors

61 parts →
T100 Frame, Landing Gear & Hardware

T100 Frame, Landing Gear & Hardware

Frame tubes, landing gear crossbeams, shell covers, buckle modules

55 parts →
T100 Remote Controller Parts

T100 Remote Controller Parts

RC Plus control sticks, shells, screen protectors, SDR antennas

16 parts →
T100 Tools & Maintenance

T100 Tools & Maintenance

Motor bearing tool kits, repair tool packs, critical spares packs

7 parts →

Most-ordered parts

Popular T100 Spreading System

All parts

Parts support

Need help finding the correct part?

Send us the aircraft model, the DJI material number printed on the old part (for example YC.JG.ZS003588), and a clear photo. We confirm compatibility before you order.

  • Aircraft model — this collection fits the DJI Agras T100
  • DJI material number — printed on the part or its label; we match it to the exact OEM listing
  • A clear photo — of the part in place and any damage
  • The symptom or app message — so we can check the diagnosis, not just the part
Search by part number Diagnose with DJI Doctor
  • USA-First Agras Support Support for American DJI Agras operators from identification through repair.
  • U.S. Compatibility Checked Fitment checked against the T100 and the DJI material number.
  • Free U.S. Shipping on Eligible Parts Shipping eligibility is shown on each listing before you order.
  • Fast shipping across the U.S. In-stock parts ship the same business day with tracking, so a grounded aircraft is not waiting on a warehouse.

Send us your part details

Replies from a DJI Agras technician, usually the same business day.

T100, T70P, T55, T50, T25, T40…
Printed on the part, e.g. YC.JG.ZS003588
What the aircraft does, any app message or LED pattern.
Sending a photo Reply to our confirmation email with the photo attached, or text it to +1 (505) 396-9995. A photo of the part in place helps the technician confirm the exact OEM listing.

Trusted by DJI Agras operators

What DJI Agras operators say

All testimonials

The Landing Gear Wheels make moving our drone effortless. No more lifting or dragging in the field. Installation was quick, and shipping was fast.

Ryan Patterson, Nebraska Read their story →

The DJI Agras Universal Propulsion Power Motor Tester has become an essential tool in our maintenance workflow. It allows us to quickly diagnose propulsion issues before deployment, saving valuable time during sprayin...

Adam Faser, Nebraska Read their story →

Game changer! The DJI Agras Universal Propeller Straps keep our blades secure during every transport. Ares Acres delivered fast!

Taylor Knight, Iowa Read their story →

Answers before you order

Frequently asked questions — T100 Spreading System Parts

Which auger sizes does the T100 spreading system use?

DJI's 150L spreading system uses screw feeders sized by material: extra-large for 0.5 to 10 mm, large for 4 to 10 mm, medium for 4 to 6 mm and small for 0.5 to 4 mm. Ares Acres stocks all four augers, bushings and auger kits.

What should I check before each spreading job?

DJI asks that the screw feeder and spinner disc function normally before each use and that the tank is free of caked fertilizer clumps, bags, straw, gravel or other foreign objects. Take care with the motor cable during disassembly to avoid damaging it.

Are T100 and T70P spreaders interchangeable?

DJI states the spreaders of the T70P and T100 are compatible but the tanks are not. Where a spreading part is listed with T70P fitment the product page states it, so confirm with the compatibility line before ordering.

What spreading parts are stocked besides augers?

Auger motors, motor bases, covers and housing assemblies, the auger sensor, spinner disks, spinner disk motors, shells and cables, dosing tunnels, spreader sealing diaphragms, the spreading system tank lid, the stainless steel spread filter and complete 100 L and 150 L spreading systems.

Where can I learn to program and calibrate the spreader?

The Ares Acres tutorial on programming and calibrating the DJI T100 spreading system covers auger selection and tare and flow calibration, and the auger size guide compares small, medium, large and extra-large feeders for cover crop season.
