DJI Agras T100 150L Material Guide: 0.5-10 mm Granules & 3-10 m Spreading Range (Canada)
🇨🇦 CANADA — DJI Agras T100 150L Material Guide: 0.5–10 mm Granules & 3–10 m Spread Width for Canadian Fertilizer & Seed
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Material Guide: 0.5-10 mm Granules & 3-10 m Spreading Range
This Canadian edition is written for Canadian DJI Agras operators on broad-acre canola, spring wheat, barley and pulse ground across Saskatchewan, Alberta and Manitoba. It covers dry-granule compatibility, the XL/L/M/S feeder sizes and the variables that set the 3–10 m spreading range. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T100 falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Ares Acres stocks T100 augers, spinner discs and spreading-system parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
Spreading quality on the T100 150L system depends on more than tank volume. DJI ties the final spreading range to material diameter, screw-feeder model, spinner-disc rotational speed and flight altitude, while the DJI Agras app separately recommends the payload weight for the current aircraft state and surroundings.
Quick Answer: Use dry material from 0.5-10 mm diameter. Match the feeder to the particle size, then adjust material diameter, feeder model, spinner-disc speed and flight altitude to target a 3-10 m spreading range. Do not exceed the payload weight recommended by DJI Agras.
Dry materials only
DJI states that the 150L Spreading System is compatible with dry materials from 0.5 to 10 mm in diameter. Using other materials can reduce operating performance and may damage the spreading system. Each spreading material should also be used according to its own instructions.
Match particle diameter to the feeder
Direct product paths are available for the XL auger, L auger, M auger, and S auger. Use the manual ranges as the starting point; material behaviour can still vary within a nominal diameter range.

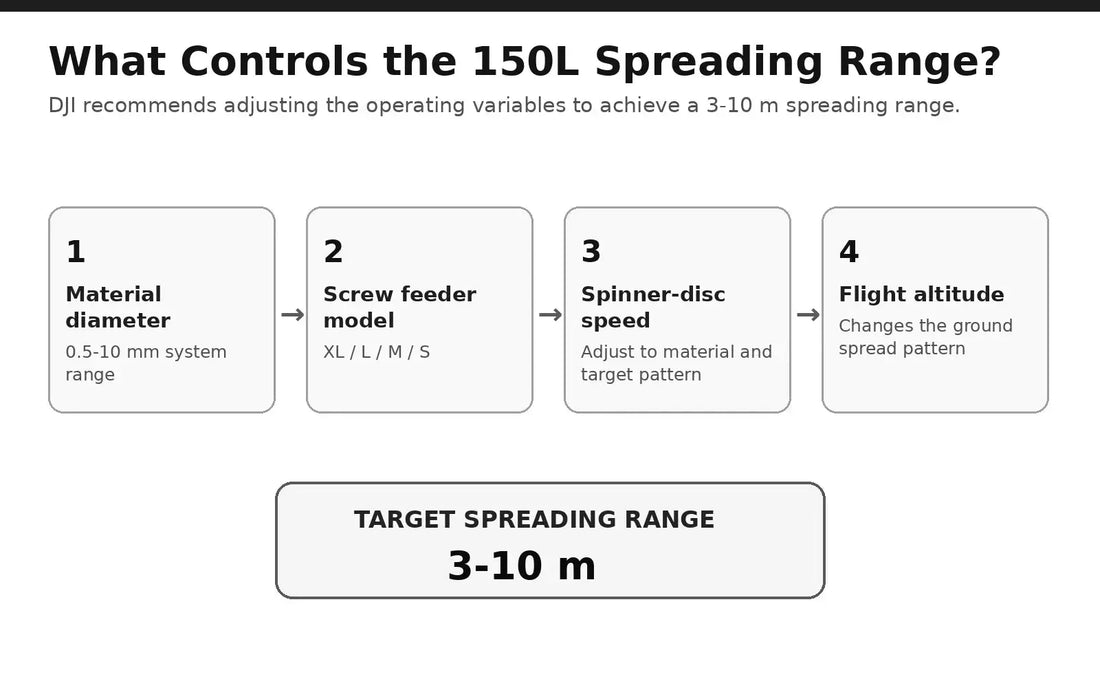

Four variables control spreading range
The source does not give one universal setting. Instead, it says spreading range varies with particle diameter, feeder model, spinner-disc rotational speed and flight altitude. For optimal performance, DJI recommends adjusting the relevant variables to achieve a 3-10 m range.
Payload is app-recommended, not a fixed number in this document
The product information does not provide a universal maximum material weight for every condition. It says DJI Agras will recommend payload weight according to the current aircraft status and surroundings. The loaded material must not exceed that recommendation or flight safety may be compromised.
Do not let foreign material change the feed behaviour
Caked fertilizer, woven-bag fragments, straw, gravel and other foreign objects can interrupt discharge and change the spread pattern. Clean material condition is part of setup, not just maintenance.
Parts & Equipment Referenced in This Guide
- T100 OEM 150 Liter Seeding System
- Extra Large Auger (XL)
- Large Auger (L)
- Medium Auger (M)
- Small Auger (S)
- T100 Spinner Disk
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related T100 Collections
Related T100 Tutorials
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Material Guide: 0.5-10 mm Granules & 3-10 m Spreading Range
Canadian Operator FAQ: T100 150L Material Guide
Does Ares Acres ship T100 augers, spinner discs and spreading-system parts to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including T100 augers, spinner discs and spreading-system parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to fly the DJI Agras T100 in Canada?
Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T100 falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this material and spread-range guidance different for Canadian operators?
No. The material and spread-range guidance described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI 150L Spreading System Product Information v1.0 (2025), Warnings and Specifications.
