DJI Agras T100 150L Spreading System Installation Guide: Spray-to-Spread Conversion (Canada)
🇨🇦 CANADA — DJI Agras T100 150L Spreading System Installation: Spray-to-Spread Conversion for Prairie Fertilizer & Cover-Crop Seeding
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Spreading System Installation Guide: Spray-to-Spread Conversion
This Canadian edition is written for Canadian DJI Agras operators on broad-acre canola, spring wheat, barley and pulse ground across Saskatchewan, Alberta and Manitoba. It covers replacing the T100 spraying system with the 150L Spreading System: battery removal, cable connections and the conversion sequence. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T100 falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Ares Acres stocks the T100 150L seeding system, augers and spreading parts referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
The DJI 150L Spreading System Product Information v1.0 provides a compact but important installation sequence for converting the T100 from its spraying configuration to the 150L spreading configuration. This guide expands that sequence into a visual field procedure without adding steps that are not shown or supported by DJI.
Quick Answer: DJI states that this 150L Spreading System is compatible with the T100 aircraft only in this source revision and requires aircraft firmware that supports the spreading system. Before installation, remove the Intelligent Flight Battery. Remove the spraying system, install the spreading system as shown in Figure A, reconnect the system cables securely, protect any detached connectors with their original covers, then verify that the spinner disc cannot contact cables or surrounding structure during operation.
Before removing the spraying system
Remove the T100 Intelligent Flight Battery before beginning installation. DJI specifically places this requirement under Figure A. Do not treat the aircraft as safely de-energized while the flight battery is still installed.
Remove the spraying system and install the spreader

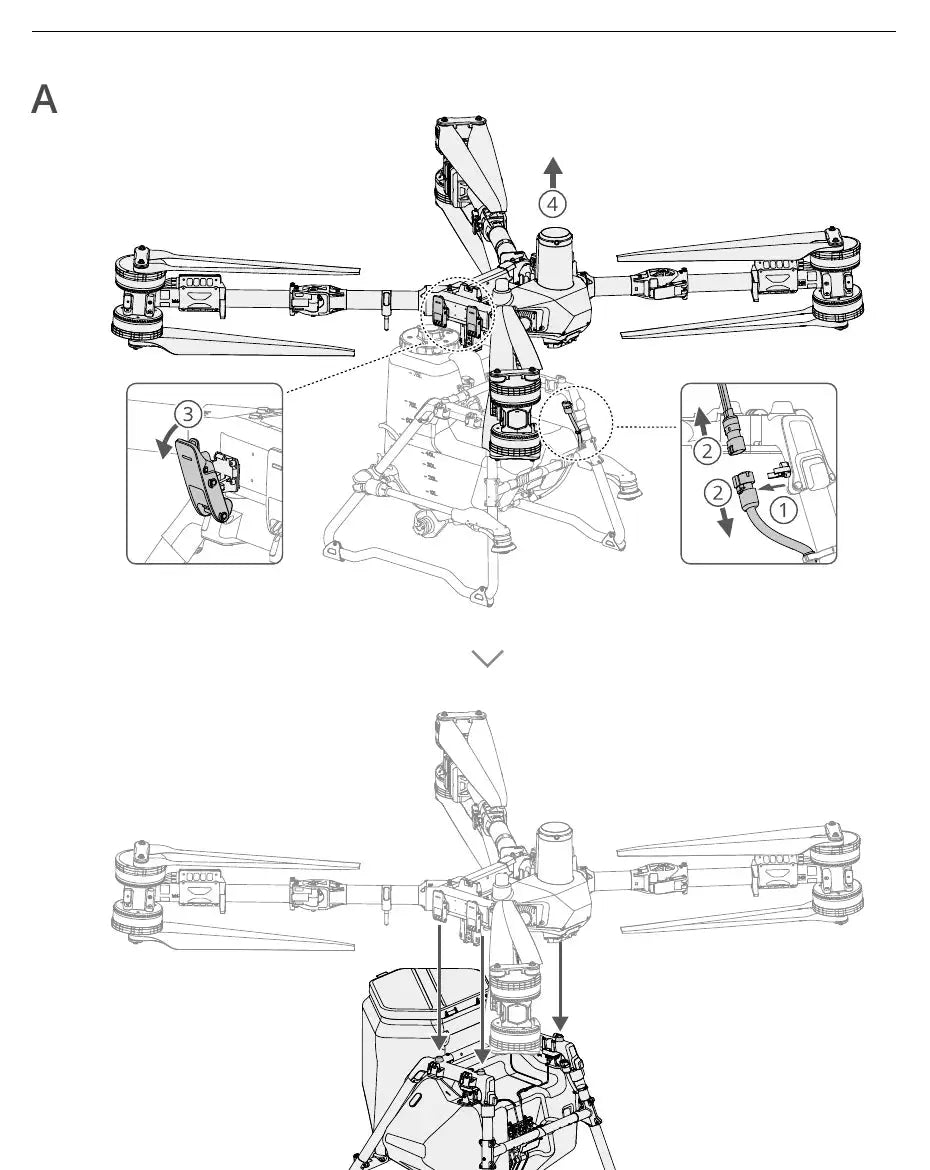

Figure A shows the spraying-system connections being detached, the spraying-system assembly being lifted away, and the spreading-system assembly being installed in its place. Follow the illustrated sequence and support the assemblies so cable loads are not carried by the connectors.
Protect disconnected cables and connectors
DJI instructs users to attach the original covers to all removed cables and their corresponding connectors. Once the spreading-system cable is connected, attach the covers of the two connectors together so foreign objects cannot enter.
Post-installation clearance check
After installation, inspect the aircraft and spreading system to make sure the spinner disc will not damage any cable or other structure during operation. Cable routing and connector security are part of the installation check, not an afterthought.
The complete system is available as the DJI Agras T100 OEM 150 Liter Seeding System. This article follows DJI Product Information v1.0, which explicitly states T100-only compatibility for this 150L system.
Parts & Equipment Referenced in This Guide
- DJI Agras T100 OEM 150 Liter Seeding System
- DJI Agras T100 OEM Spinner Disk
- DJI Agras T100 OEM Spinner Disk Cable
- DJI Agras T100 OEM Spreader Sealing Diaphragm
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related T100 Collections
Related T100 Tutorials
- How to Program the DJI T100 Spreading System
- T100 Auger Size Guide
- 150L Preflight, Blockage Prevention & IP67 Safety
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Spreading System Installation Guide: Spray-to-Spread Conversion
Canadian Operator FAQ: T100 150L Spreading System Installation Guide
Does Ares Acres ship the T100 150L seeding system, augers and spreading parts to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the T100 150L seeding system, augers and spreading parts referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to fly the DJI Agras T100 in Canada?
Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T100 falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this spray-to-spread conversion different for Canadian operators?
No. The spray-to-spread conversion described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI 150L Spreading System Product Information v1.0 (2025), Figure A and English warnings/specifications.
