DJI T100 Dual-Battery Spraying System User Guide: Installation, Payload, IPX6 & Safety
This manual hub reorganizes DJI T100 Dual-Battery Spraying System Product Information v1.0 into a compact visual cluster. The source is short: one installation illustration plus a focused warning section. Rather than padding it with unsupported specifications, the build concentrates on the four meaningful operator questions the source actually answers.
Quick Answer: The dual-battery spraying system identified in the compliance section as LS100-DB is T100-only in this source revision. The aircraft firmware must support it. Install the system using DJI's five-step illustration, use the payload recommendation shown in DJI Agras, keep cable connections secure, and inspect seals/covers because the IPX6 rating is conditional and can decline with damage, wear or improper closure.
Dual-battery spraying visual manual index
- Installation Guide
- Compatibility & Payload Guide
- Cable & IPX6 Protection Guide
- Preflight & Safety Checklist

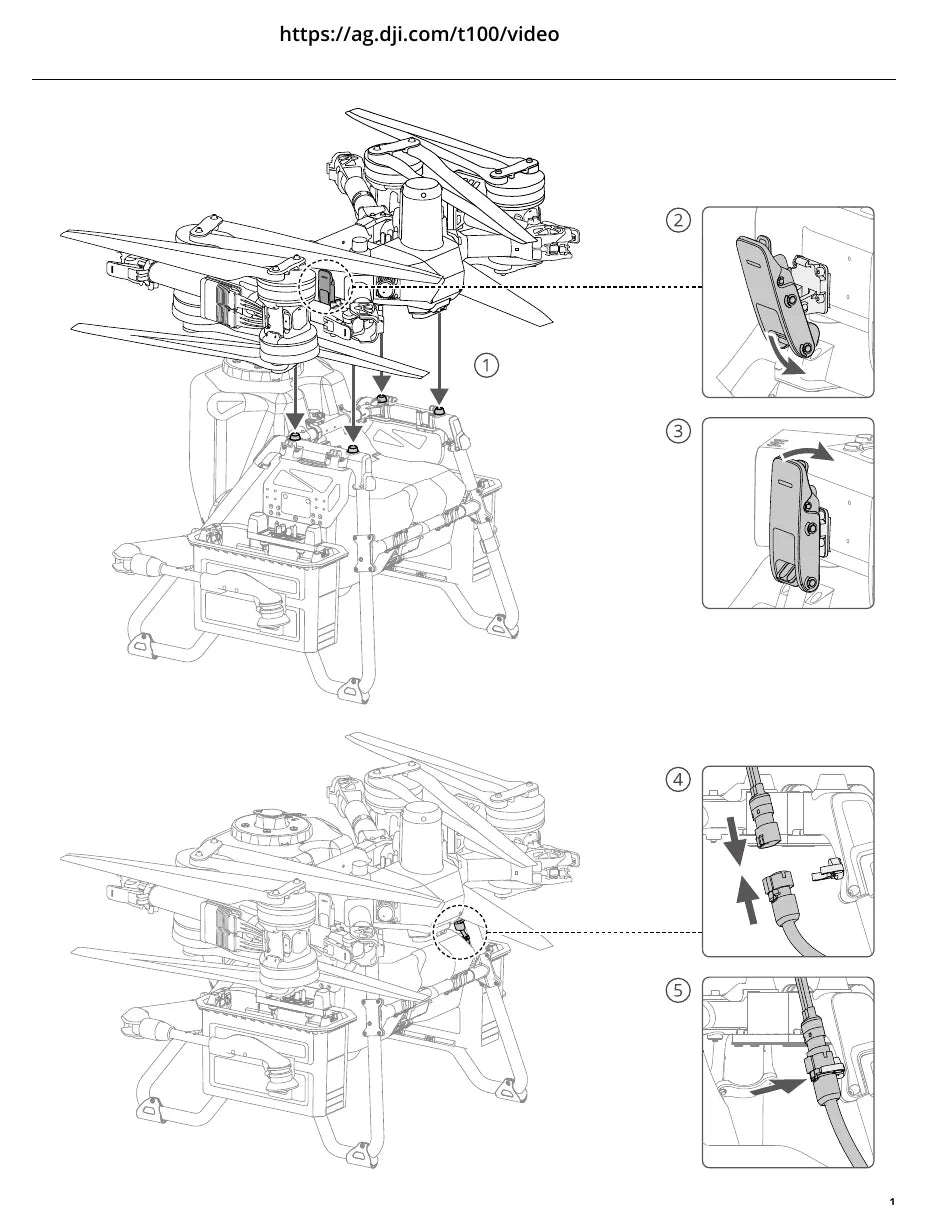

Installation is primarily diagram-driven
The product-information sheet does not provide torque tables or a long service procedure. The manufacturer figure is therefore the authoritative physical reference. The installation article separates steps 1-3 from the cable connection shown in steps 4-5 for easier field reading.
Payload is condition-dependent
DJI does not state one universal maximum spray-tank load in this sheet. The app recommends payload according to current aircraft status and surroundings, and the system should not be overloaded.
IPX6 protection has limits
The source also states that water damage is not covered by the product warranty and warns against disassembling factory-installed parts because doing so can affect ingress protection.
Commerce and service paths
The store does not currently expose a separate active LS100-DB product page. The relevant commercial handoff is therefore the DJI Agras T100 plus the DJI Agras T100 Spraying System Parts and T100 Battery & Power Parts collections. Individual broader T100 spray-system products are linked only where useful and are clearly distinguished from LS100-DB-specific parts.
Parts & Equipment Referenced in This Guide
- DJI Agras T100
- T100 Spray System Critical Spares Pack
- Centrifugal Spray Lance Cable
- Sprinkler Adapter Cable
Shop Related Collections
- DJI Agras T100 Spraying System Parts
- DJI Agras T100 Battery & Power Parts
- DJI T100 Parts
- DJI Repair Kits
Related Existing Tutorials
Source and revision note
Primary source: DJI T100 Dual-Battery Spraying System Product Information v1.0 (2025). Compliance documentation identifies the product as model LS100-DB.
