DJI D14000iE: Manual Completo de Setup, Operação e Manutenção
DJI D14000iE: Manual Completo — Setup, Operação, Manutenção e Troubleshooting
Esta página funciona como o hub técnico do DJI D14000iE, reorganizando o User Manual v1.0 em rotas de setup, pre-operation, charging, outdoor AC power, storage, maintenance e diagnostics.
Como usar: comece por setup e pre-operation. Depois abra a guia correspondente à tarefa. Em warning/error, identifique primeiro o LED channel, use o remote controller para details quando indicado e só então avance para subsystem/component.
1. Setup e first use

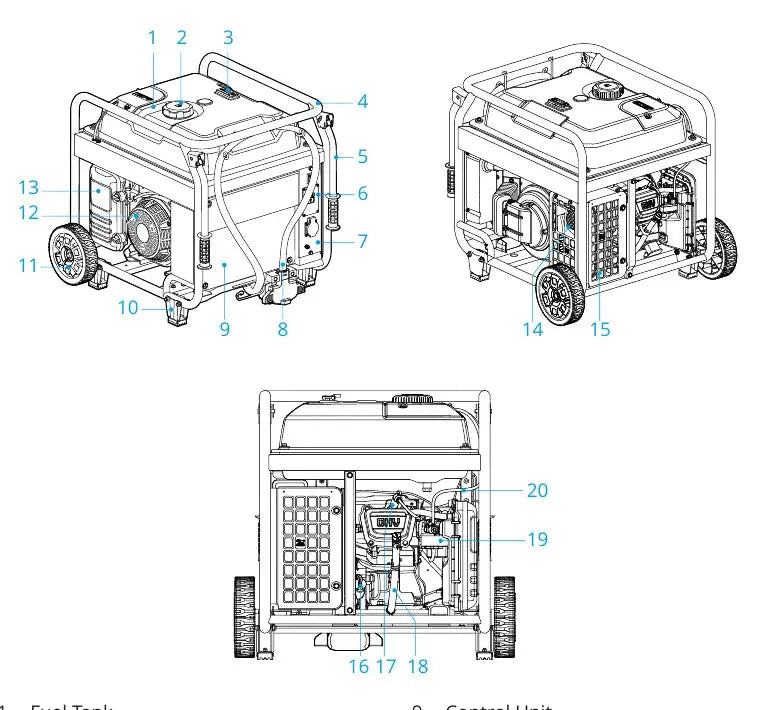

Supporting feet, casters, handles, component map, factory-no-oil warning e commissioning.
2. Operation panel e LEDs
Charging, AC Module e Generator channels. Four yellow = not activated; four red = maintenance required.
3. Pre-operation
Leaks, flammables, hardware, fuel, oil e air filter.
4. Activation, firmware e charging
DJI Agras activation, fuel minimum, battery connection order, START timing e AC-load effects.
5. Outdoor AC power
Battery-backed AC sem gasoline-engine start, START x3, grounding e 50/60 Hz.
6. Storage e transport
30+ day procedure, oil/fuel drainage e 15-minute transport cooldown.
7. Maintenance schedule
10h, 20h, 50h, 100h, 300h/1y e 2-year milestones.
8. Engine oil
SJ 10W-40/API SJ+, daily check, 15-minute wait e drain/refill procedure.
9. Air filter e spark arrestor
Sponge, paper e arrestor têm procedures diferentes; no compressed air on paper element.
10. Spark plug F6RTC
0.6–0.8 mm gap, 2–3 hand-thread turns, 20–25 N·m.
11. Diagnostic hierarchy
- symptom;
- LED pattern;
- activation/maintenance state;
- oil/fuel;
- controller details;
- subsystem;
- part last.
12. Control branch
Generator Controller / Switch Button only after evidence.
13. Cranking branch
Electric Starter / Starter Relay; no-start alone is insufficient.
14. Fuel branch
Pump/filter follow fuel evidence and schedule.
15. Ignition branch
Spark plug first, ignition coil only when supported.
16. Maintenance branch
Use Maintenance Pack according to intervals.
17. Protection branch
Protective cover only after cooling/not operating.
18. Fleet record
- asset;
- hours;
- activation/firmware;
- oil;
- filters;
- spark plug;
- major service;
- fuel-system work;
- LED history;
- storage events.
19. Scope
No invented torque, compatibility or internal repair procedures beyond the source.
20. Fonte
DJI D14000iE User Manual v1.0 (2025.06), pp. 3–22.
