DJI Agras T100 150L Spreading System Parts Guide: Augers, Spinner Disc, Motors & Cables
The DJI Product Information sheet names only a few functional elements directly - the spread tank, screw feeder, spinner disc, cables/connectors and the aircraft interface - but those elements map to a much broader service catalog. This guide connects the source diagram to verified T100 spreading-system product pages without inventing repair procedures that the product-information sheet does not contain.

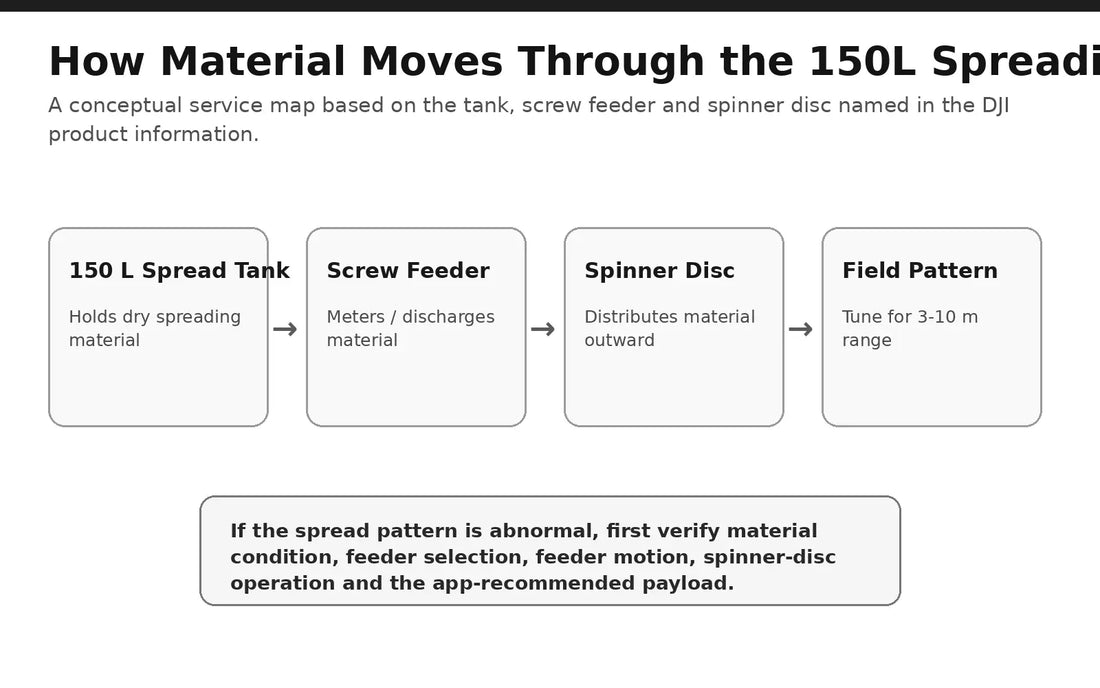

Quick Answer: Think of the system as a material path: 150 L tank → screw feeder → spinner disc → spread pattern. Electrical and mechanical support components include the auger motor, spinner-disc motor, spinner-disc cable, housings and sealing components. Use the source diagrams to identify the subsystem first, then choose the exact part only after confirming the failed component.
Complete 150L system
The primary assembly is the DJI Agras T100 OEM 150 Liter Seeding System. According to the uploaded DJI Product Information v1.0, this 150L system is for T100 aircraft and requires spreading-system-compatible firmware.
Screw feeders / augers
The source defines four feeder sizes by material diameter. Verified product pages include the Extra Large Auger (XL), Large Auger (L), Medium Auger (M), and Small Auger (S).
Auger drive components
The feed drive can be serviced through the T100 Auger Motor, Auger Motor Housing Assembly, Auger Motor Service Kit, Auger Motor Base, and Auger Motor Cover. The Product Information sheet itself does not provide internal motor-repair steps, so use these as component-identification and replacement paths after diagnosis.
Spinner-disc components
The output side includes the T100 Spinner Disk, Spinner Disk Motor, Spinner Disk Cable, Spinner Disk Repair Kit, and Sowing Spinner Disc Shell.
Sealing and enclosure components
Because DJI explicitly ties protection performance to intact seals and properly secured covers, sealing parts belong in the diagnostic path after physical damage or water-ingress concerns. One verified item is the T100 Spreader Sealing Diaphragm.
Do not select a replacement from symptom alone
An abnormal spread pattern can originate from material condition, feeder choice, feeder motion, spinner-disc operation, cable/connector problems, aircraft payload or flight settings. Use the source troubleshooting order before buying a part: verify material, verify feeder, verify spinner, inspect cables/connectors, then move to component replacement.
Parts & Equipment Referenced in This Guide
- 150 Liter Seeding System
- Extra Large Auger
- Large Auger
- Medium Auger
- Small Auger
- Auger Motor
- Spinner Disk
- Spinner Disk Motor
- Spinner Disk Cable
- Spreader Sealing Diaphragm
Shop Related T100 Collections
Related T100 Tutorials
Source and revision note
Primary source: DJI 150L Spreading System Product Information v1.0 (2025). Product links map source-named subsystems to verified active Ares Acres catalog pages.
