DJI D-RTK 3 AG User Manual: Setup, Activation, Indicators, Positioning & Maintenance

September 17, 2026

This D-RTK 3 AG manual hub reorganizes DJI User Manual v1.0 (2025.07) into focused visual tutorials. The source is only 15 pages, so the build stays topic-driven: first use, physical field setup, status interpretation, positioning, firmware/logs, storage and the one explicit part-replacement procedure.

Quick Answer: Charge and activate the station before first use, choose an open interference-controlled site, mount and level it on the Survey Pole and Tripod kit, then choose the appropriate positioning mode. Use the indicator guide for battery/GNSS status, DJI Assistant 2 for firmware and log export, and the storage guide for long-term battery care.

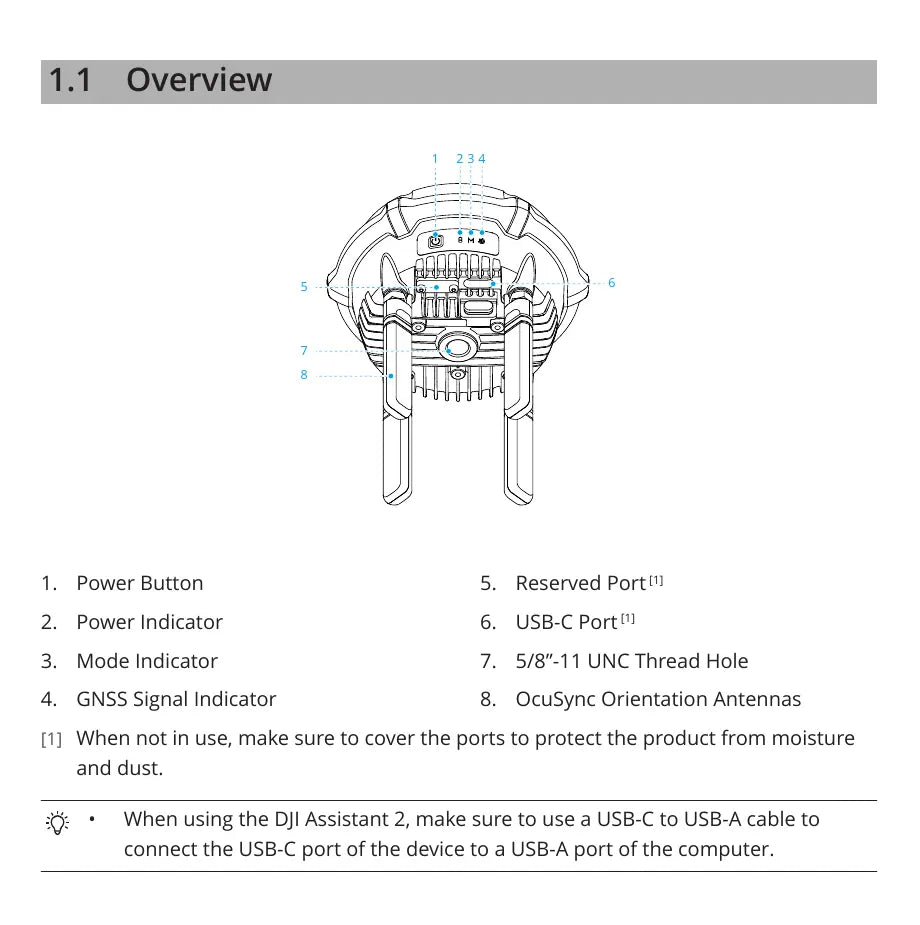

D-RTK 3 AG numbered component map — Product-profile orientation: button, indicators, ports, mounting thread and OcuSync orientation antennas.

D-RTK 3 AG visual manual index

D-RTK 3 AG site selection requirements — Field-positioning quality begins with the physical site: sky view, radio separation, high-voltage separation and multipath control.

D-RTK 3 AG tripod and survey pole setup diagram — The manufacturer installation diagram shows the physical tripod/pole workflow.

Positioning modes

D-RTK 3 AG positioning mode decision PPP network RTK custom coordinates — Manual-derived positioning logic. The existing live D-RTK 3 tutorial remains the detailed operating article rather than duplicating it.

The manual says PPP is suitable where Network RTK is unavailable, Network RTK or Custom Network RTK is suitable where network service exists, and Custom Coordinates is used at a location with saved or known coordinates. If the station is restarted or moved during ionospheric activity, the manual instructs operators to return it to the same location and use the saved coordinates in Custom Coordinates mode.

Indicators and maintenance

D-RTK 3 AG indicator guide — Power, satellite-count and combined system-state indicators.

D-RTK 3 AG firmware update steps — DJI Assistant 2 handles firmware updates and device log export.

Exact product and collection paths

The direct hardware path is the DJI Agras T100 D-RTK 3 High-Precision GNSS Mobile Station. For T100 deployments, activation and configuration use the DJI Agras T100 OEM Remote Controller. Broader navigation hardware is organized under the DJI Agras T100 Radar, RTK & Sensor Parts collection.

The manual's Appendix does not publish numerical specifications; it directs users to DJI's current specifications page. For that reason, this manual cluster intentionally does not invent a standalone specifications article from unsupported numbers.
