DJI Agras T100 150L Spreading System User Guide: Installation, Feeders, Materials & Parts

This visual manual reorganizes DJI's 150L Spreading System Product Information v1.0 into focused operator guides. The source is compact, so the cluster is intentionally component- and task-based rather than artificially stretched into long chapters.

Quick Answer: In this DJI source revision, the 150L Spreading System is for T100 aircraft only and requires firmware that supports spreading. The system uses dry materials from 0.5-10 mm, supports XL/L/M/S screw feeders with different particle-size ranges, and should be tuned toward a 3-10 m spreading range. Before every use, check the screw feeder and spinner disc, keep foreign objects out of the material stream, and do not exceed the DJI Agras app's recommended payload weight.

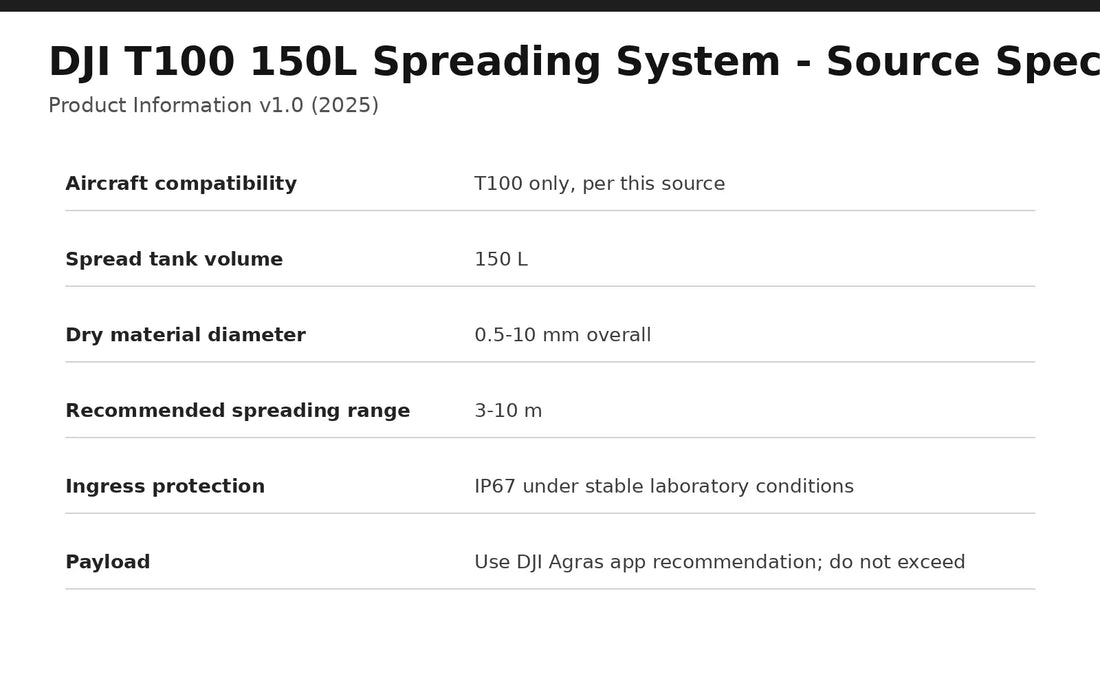

DJI T100 150L spreading system compatibility tank volume material range spreading range and payload guidance
Core source specifications from DJI Product Information v1.0.

150L visual manual index

  1. Installation Guide: Spray-to-Spread Conversion
  2. Screw Feeder Replacement: XL, L, M & S
  3. Material Size & 3-10 m Spreading Range
  4. Preflight, Blockage Prevention, Payload & IP67
  5. Parts Guide: Augers, Spinner Disc, Motors & Cables
T100 150L spreading system installation manual illustration
Figure A is the core installation diagram for converting the aircraft from spraying to spreading.

What is included

T100 150L spreading system package XL M screw feeders and spare spinner disc
The package illustration shows the spreader, XL feeder already installed, M feeder and one spare spinner disc.

Screw feeder selection

T100 150L screw feeder selection chart XL L M S
Feeder ranges stated by DJI: XL 0.5-10 mm, L 4-10 mm, M 4-6 mm, S 0.5-4 mm.

Spreading range

T100 150L spreading range controlled by material diameter feeder spinner speed and altitude
DJI recommends adjusting the relevant operating variables to achieve a 3-10 m spreading range.

Preflight and system protection

T100 150L spreading system preflight checklist
Before use: verify feeder and spinner operation, cable security, material cleanliness and payload.

The source also rates the system IP67 under stable laboratory conditions while warning that protection can decrease with collision damage, cracked seals, improperly secured covers, aging and wear.

Use existing T100 operational tutorials instead of duplicating them

This product-information cluster intentionally does not rewrite topics already covered elsewhere. For operating software and calibration, use DJI T100 Spreading System Programming & Calibration. For broader seasonal feeder selection, use the existing DJI Agras T100 Auger Size Guide.

Parts & Equipment Referenced in This Guide

Shop Related T100 Collections

Source and revision note

Primary source: DJI 150L Spreading System Product Information v1.0 (2025). The source's English section covers warnings, Figure A installation, Figure B screw-feeder replacement and specifications.
