DJI Agras T100 150L Spreading System User Guide: Installation, Feeders, Materials & Parts (Canada)
🇨🇦 CANADA — DJI Agras T100 150L Spreading System User Guide Hub: Installation, Feeders, Materials & Parts for Canadian Operators
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Spreading System User Guide: Installation, Feeders, Materials & Parts
This Canadian edition is written for Canadian DJI Agras operators on broad-acre canola, spring wheat, barley and pulse ground across Saskatchewan, Alberta and Manitoba. It is the hub for the whole 150L Spreading System manual: installation, screw feeders, dry-material sizes, spreading range, preflight and parts. The procedure, specifications and warnings below are identical to the original edition linked above — the hardware does not change at the border. What changes for a Canadian operator is the regulatory and purchasing context: the DJI Agras T100 falls into Transport Canada’s medium RPAS class (25–150 kg) and flies within visual line of sight on an Advanced Operations pilot certificate under the November 2025 rules, with a Special Flight Operations Certificate for anything outside that envelope; spraying follows provincial applicator licensing and Health Canada PMRA aerial label directions, and pricing is shown in Canadian dollars. Ares Acres stocks the T100 150L seeding system and its full parts catalogue referenced in this guide as genuine DJI Agras OEM parts, ships them to Canada with free standard shipping, and shows CAD pricing at checkout.
This visual manual reorganizes DJI's 150L Spreading System Product Information v1.0 into focused operator guides. The source is compact, so the cluster is intentionally component- and task-based rather than artificially stretched into long chapters.

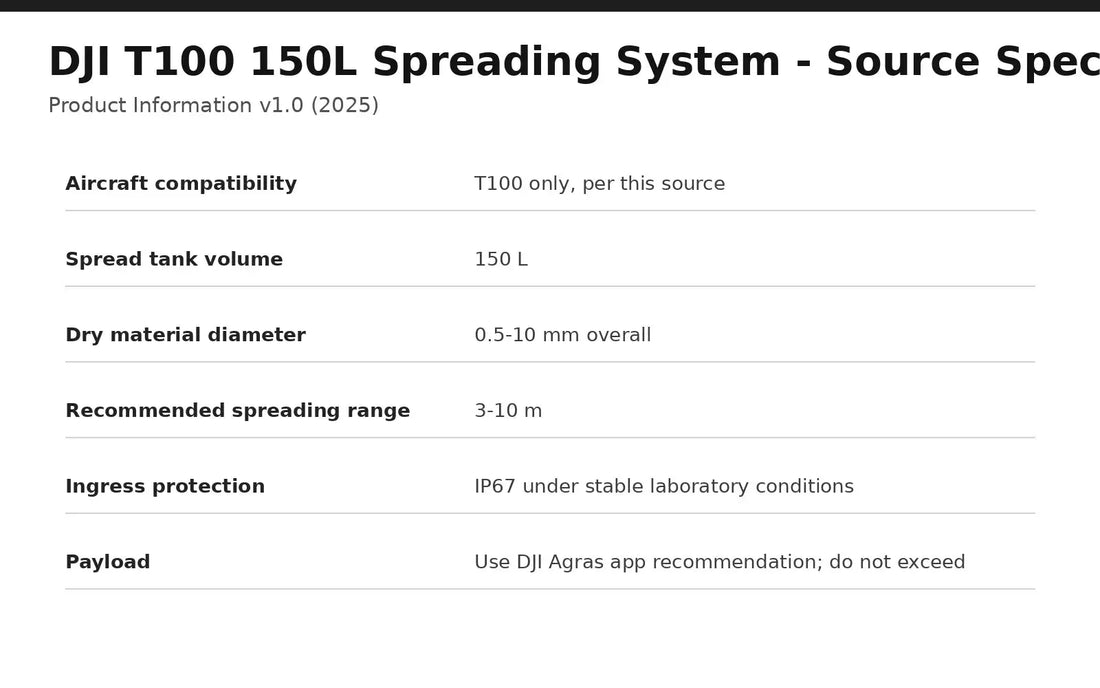

Quick Answer: In this DJI source revision, the 150L Spreading System is for T100 aircraft only and requires firmware that supports spreading. The system uses dry materials from 0.5-10 mm, supports XL/L/M/S screw feeders with different particle-size ranges, and should be tuned toward a 3-10 m spreading range. Before every use, check the screw feeder and spinner disc, keep foreign objects out of the material stream, and do not exceed the DJI Agras app's recommended payload weight.
150L visual manual index
- Installation Guide: Spray-to-Spread Conversion
- Screw Feeder Replacement: XL, L, M & S
- Material Size & 3-10 m Spreading Range
- Preflight, Blockage Prevention, Payload & IP67
- Parts Guide: Augers, Spinner Disc, Motors & Cables
What is included
Screw feeder selection
Spreading range
Preflight and system protection
The source also rates the system IP67 under stable laboratory conditions while warning that protection can decrease with collision damage, cracked seals, improperly secured covers, aging and wear.
Use existing T100 operational tutorials instead of duplicating them
This product-information cluster intentionally does not rewrite topics already covered elsewhere. For operating software and calibration, use DJI T100 Spreading System Programming & Calibration. For broader seasonal feeder selection, use the existing DJI Agras T100 Auger Size Guide.
Parts & Equipment Referenced in This Guide
- DJI Agras T100 OEM 150 Liter Seeding System
- Extra Large Auger
- Large Auger
- Medium Auger
- Small Auger
- Spinner Disk
- Spinner Disk Motor
- Auger Motor
Every part listed above is stocked by Ares Acres as a genuine DJI Agras OEM component, ships to Canada with free standard shipping, and shows CAD pricing at checkout for Canadian customers.
Shop Related T100 Collections
🇺🇸 Reading from the United States? See the U.S. edition: DJI Agras T100 150L Spreading System User Guide: Installation, Feeders, Materials & Parts
Canadian Operator FAQ: T100 150L Spreading System User Guide
Does Ares Acres ship the T100 150L seeding system and its full parts catalogue to Canada?
Yes. Ares Acres ships genuine DJI Agras OEM parts, including the T100 150L seeding system and its full parts catalogue referenced in this guide, to Canada with free standard shipping, and Canadian customers see CAD pricing at checkout.
Do I need an SFOC to fly the DJI Agras T100 in Canada?
Not for every operation. Under Transport Canada’s November 2025 rules, the DJI Agras T100 falls into the medium RPAS class (25–150 kg) and can be flown within visual line of sight on an Advanced Operations pilot certificate; a Special Flight Operations Certificate is still required for operations outside that envelope, such as beyond visual line of sight or payloads Transport Canada treats as dangerous goods. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Is this 150L spreading system different for Canadian operators?
No. The 150L spreading system described here is identical in every country; only the regulatory framework, the purchasing path and the units used in this guide differ. Confirm current requirements with Transport Canada and your provincial regulator before operating.
Source and revision note
Primary source: DJI 150L Spreading System Product Information v1.0 (2025). The source's English section covers warnings, Figure A installation, Figure B screw-feeder replacement and specifications.
